Description
SPECIFICATIONS:
HARDWARE FEATURES |
|

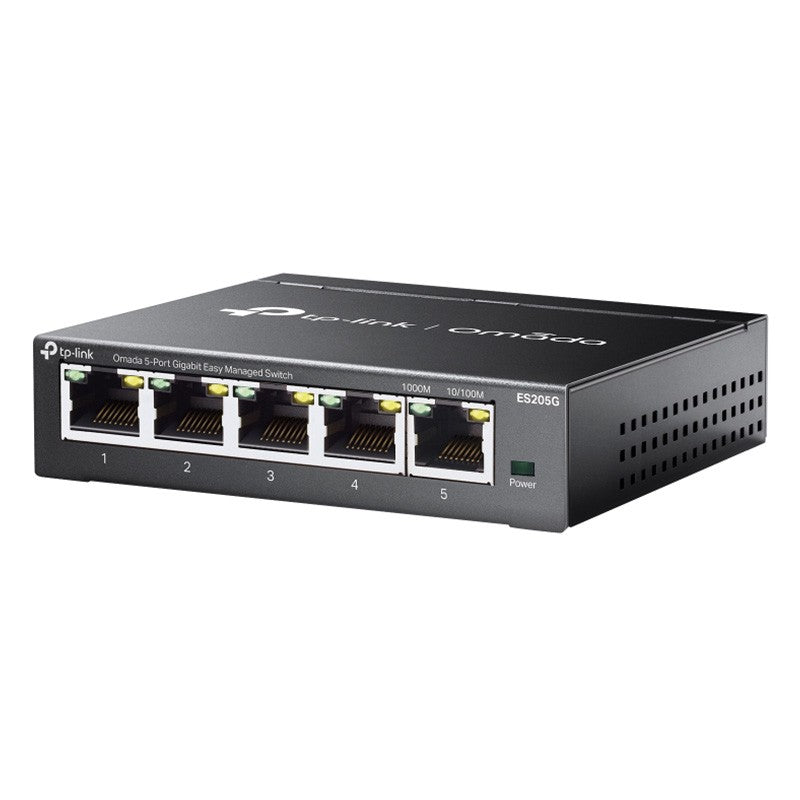

Interface |
• 5× 10/100/1000 Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
Fan Quantity |
Fanless |
Installation |
• Desktop • Wall Mount |

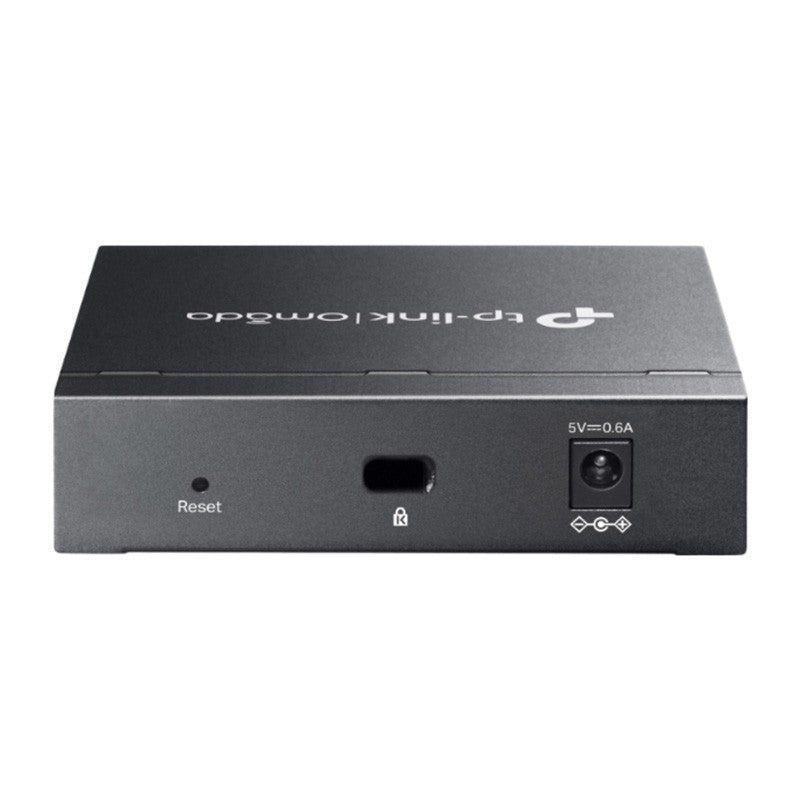

Physical Security Lock |
√ |
Power Supply |
External DC Power Adapter (Output: 5 VDC/ 0.6 A) |
Dimensions ( W x D x H ) |
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
PERFORMANCE |
|
Switching Capacity |
10 Gbps |
Packet Forwarding Rate |
7.4 Mpps |
MAC Address Table |
8 K |
Packet Buffer Memory |
4 Mbits |
Jumbo Frame |
15 KB |
SOFTWARE FEATURES |
|
Quality of Service |
• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
L2 Features |
• Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
L2 Multicast |
• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN |
• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Transmission Method |
Store-And-Forward |
MANAGEMENT |
|
Omada App |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management |
• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access |
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning |
Yes. Requires the use of Omada Cloud-Based Controller |
Management Features |
• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
OTHERS |
|
Certification |
FCC, CE, RoHS |

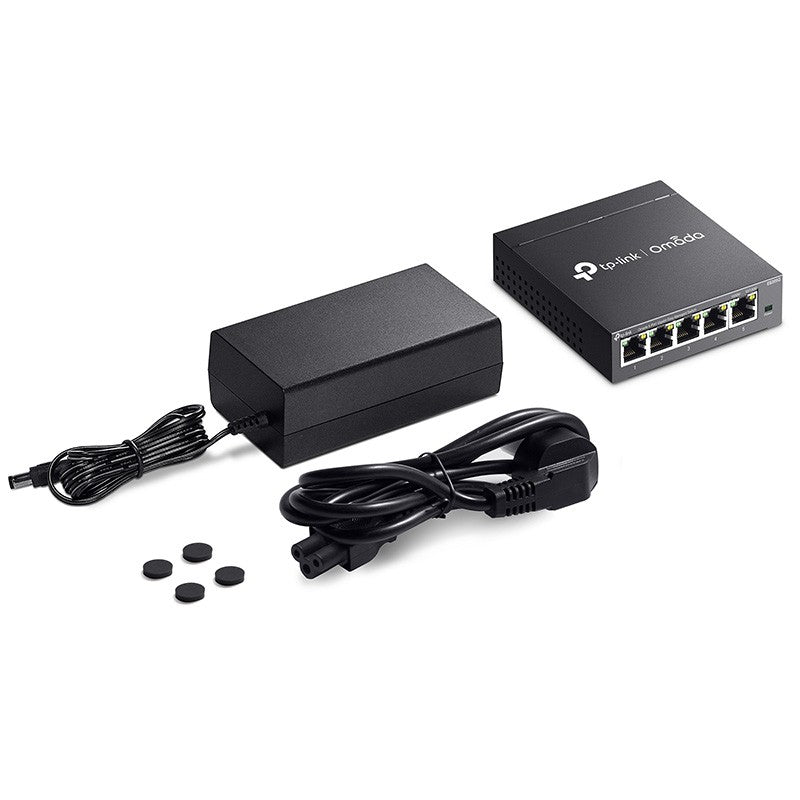

Package Contents |
• ES205G • Power Adapter • Installation Guide • Rubber Feet |
Environment |
• Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
Notes |
These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller. △QoS is supported under Standalone Mode. |
