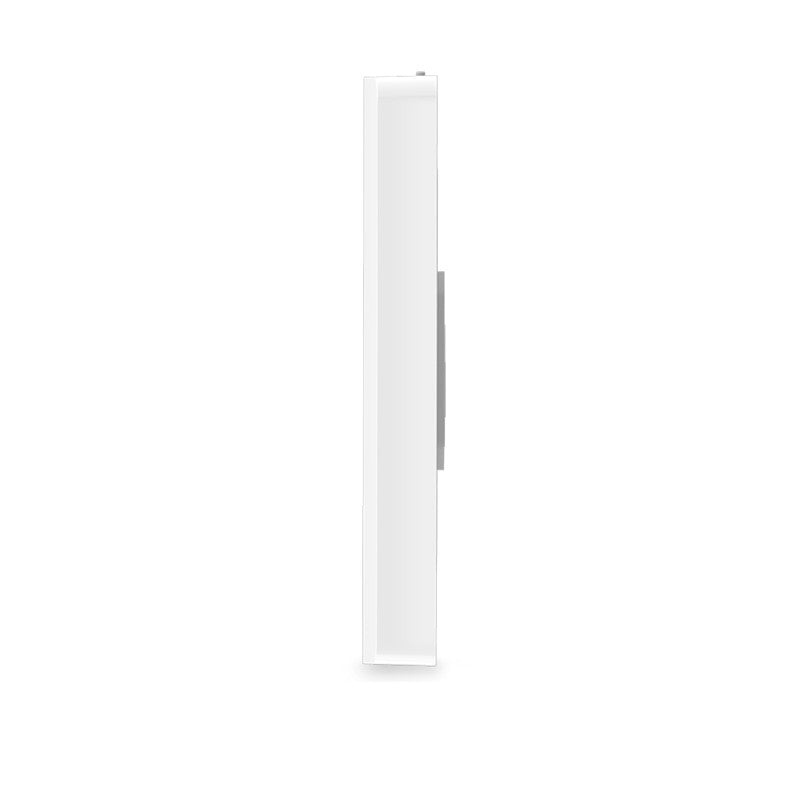

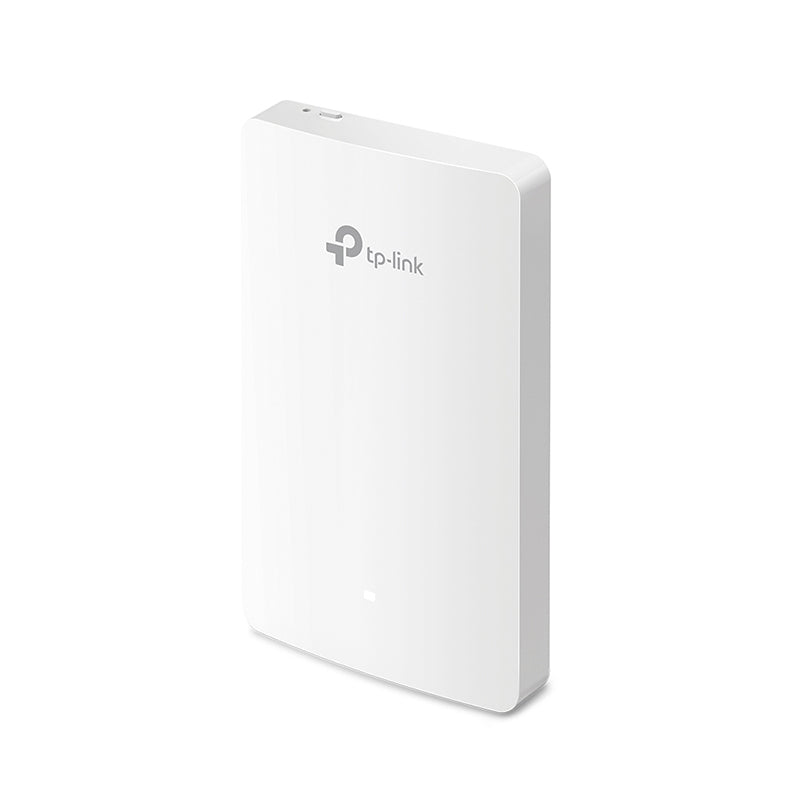

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
SPECIFICATIONS:
| Interface | Uplink: 10/100/1000 Mbps Ethernet Port*1 |
| Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.) | |
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/802.3at PoE |
| Power Consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions | 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas |
| 2.4GHz: 2*4dBi | |
| 5GHz: 2*4dBi | |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 5GHz: Up to 867Mbps |
| 2.4GHz: Up to 300Mbps | |
| Wireless Functions | 16 SSIDs（Up to 8 SSIDs on each band） |
| Enable/Disable Wireless Radio | |
| Automatic Channel Assignment | |
| Transmit Power Control (Adjust Transmit Power on dBm) | |
| QoS(WMM) | |
| MU-MIMO | |
| Band Steering | |
| Beamforming | |
| Load Balance | |
| Rate Limit | |
| Reboot Schedule | |
| Wireless Schedule | |
| Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | Captive Portal Authentication |
| Access Control | |
| Wireless Mac Address Filtering | |
| Wireless Isolation Between Clients | |
| SSID to VLAN Mapping | |
| Local LAN port based VLAN | |
| Rogue AP Detection | |
| 802.1X Support | |
| 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise | |
| Transmission Power | • CE: |
| ≤20 dBm (2.4 GHz, EIRP) | |
| ≤23 dBm (5 GHz, EIRP) | |
| • FCC: | |
| ≤21 dBm (2.4 GHz) | |
| ≤21 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1,v2c |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall |
| • Installation Guide | |
| • Mounting Screw | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
