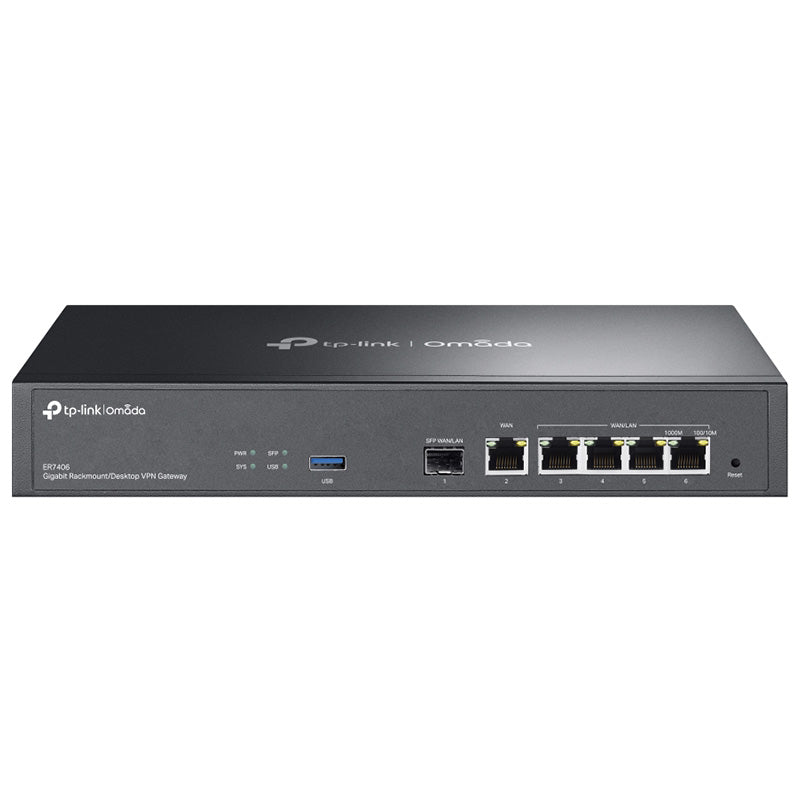

TP-Link Omada Gigabit Rackmount/Desktop VPN Gateway

Access Control

Source/Destination IP Based Access Control

Filtering

• WEB Group Filtering§

• URL Filtering

• Web Security§

ARP Inspection

• Sending GARP Packets

• ARP Scanning§

• IP-MAC Binding

Attack Defense

• TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

HARDWARE FEATURES

Standards and Protocols

• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

Interface

• 1 Gigabit SFP WAN/LAN Port

• 1 Gigabit WAN Port

• 4 Gigabit LAN/WAN Ports

• 1 USB 3.0 Port (supports USB LTE dongle and USB storage)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity

Fanless

Button

Reset Button

Power Supply

100-240VAC, 50/60Hz

Flash

128 MB NAND

DRAM

512 MB DDR4

LED

PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)

Dimensions ( W x D x H )

11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)

Protection

4 kV surge protection

Enclosure

Steel

Mounting

• Desktop

• Rackmountable

Max Power Consumption

• 7.5 W (with USB 3.0 connected)

• 4.5 W (without USB 3.0 connected)

PERFORMANCE

IPS Throughput

TCP: 229 Mbps;

UDP: 188 Mbps

DPI Throughput

TCP: 933 Mbps;

UDP: 927 Mbps

GRE

• Unencrypted: 611.9 Mbps

• Encrypted: 325.0 Mbps

WireGuard VPN

341.3 Mbps

Concurrent Session

150,000

New Sessions /Second

5,300

NAT (Static IP)

945.3 Mbps / 940.5 Mbps

NAT(DHCP)

939.6 Mbps / 940.9 Mbps

NAT(PPPoE)

943.6 Mbps / 940.9 Mbps

NAT (L2TP)

880.1 Mbps / 859.0 Mbps

NAT (PPTP)

855.0 Mbps / 907.2 Mbps

IPsec VPN Throughput

• ESP-SHA1-AES256: 617.1 Mbps

• ESP-SHA256-AES256: 592.8 Mbps

• ESP-SHA384-AES256: 592.4 Mbps

• ESP-SHA512-AES256: 604.5 Mbps

OpenVPN

139.1 Mbps

L2TP VPN Throughput

• Unencrypted: 977.4 Mbps

• Encrypted: 334.6 Mbps

PPTP VPN Throughput

• Unencrypted: 1064.1 Mbps

• Encrypted: 206.8 Mbps

SSL VPN Throughput

131.6 Mbps

66 Byte Packet forwarding rate

1,453,489 pps / 1,453,488 pps

1,518 Byte Packet forwarding   rate

81,279 pps / 81,275 pps

BASIC FUNCTIONS

WAN Connection Type

• Static IP

• Dynamic IP

• PPPoE(supports MRU Configuration)

• PPTP

• L2TP

MAC Clone

Modify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)

DHCP

• DHCP Server

• DHCPv6 PD Server (only in Standalone Mode)

• DHCP Options Customization

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6

StaticIP/ SLAAC/ DHCPv6/ PPPoE/ 6to4Tunnel/ PassThrough/ Non-Address mode

VLAN

802.1Q VLAN

IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

ADVANCED FUNCTIONS

Advanced Routing

• Static Routing

• Policy Routing

• RIP (available in Standalone Mode)

• OSPF (available in Standalone Mode)

Bandwidth Control

IP-based Bandwidth Control

Load Balance

• Intelligent Load Balance

• Application Optimized Routing

• Link Backup (Timing, Failover)

• Online Detection

NAT

• One-to-One NAT

• Multi-Net NAT

• Port Forwarding

• Port Triggering§

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit

IP-based Session Limit

VPN

GRE

√ (Only in Standalone Mode)

SSL VPN

50 Tunnels

IPsec VPN

• 100 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

• IPsec Failover

• IKE v1/v2

• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN Server

• PPTP VPN Client (10)**

• 50 Tunnels

• PPTP with MPPE Encryption

L2TP VPN

• L2TP VPN Server

• L2TP VPN Client (10)**

• 50 Tunnels

• L2TP over IPSec

OpenVPN

• OpenVPN Server

• OpenVPN Client (5)**

• 55 OpenVPN Tunnels

• "Certificate + Account" Mode

• Full Mode

AUTHENTICATION

Web Authentication

• No Authentication

• Simple Password*

• Hotspot (Local User /Voucher*/ SMS/Radius*)

• External Radius Server

• External Portal Sever<*

• LDAP§

MANAGEMENT

Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller

• Omada Hardware Controller

• Omada Software Controller

Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Service

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

Maintenance

• Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Diagnostics (Ping & Traceroute) (only in Standalone Mode)

• NTP Synchronize (only in Standalone Mode)

• Port Mirroring

• CLI (only in Standalone Mode)

• Syslog Support

Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller.

Management Features

• Automatic Device Discovery*

• Batch Configuration*

• Batch Firmware Upgrading*

• Intelligent Network Monitoring*

• Abnormal Event Warnings*

• Unified Configuration*

• Reboot Schedule*

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• ER7406

• Power Cord

• Quick Installation Guide

• Rackmount Kit

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10

• MAC OS, NetWare, UNIX or Linux

Environment

• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing

Notes

*These functions require the use of th Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.

**For PPTP VPN and L2TP VPN, ER7406 can  connect with up to 10 VPN servers. For OpenVPN, ER7406 can connect with up to 5 VPN servers

^§These functions are supported only in Standalone Mode.

^△At least one WAN/LAN port needs to function as a LAN port.
