Description
TP-Link Omada Gigabit WDM Media Converter

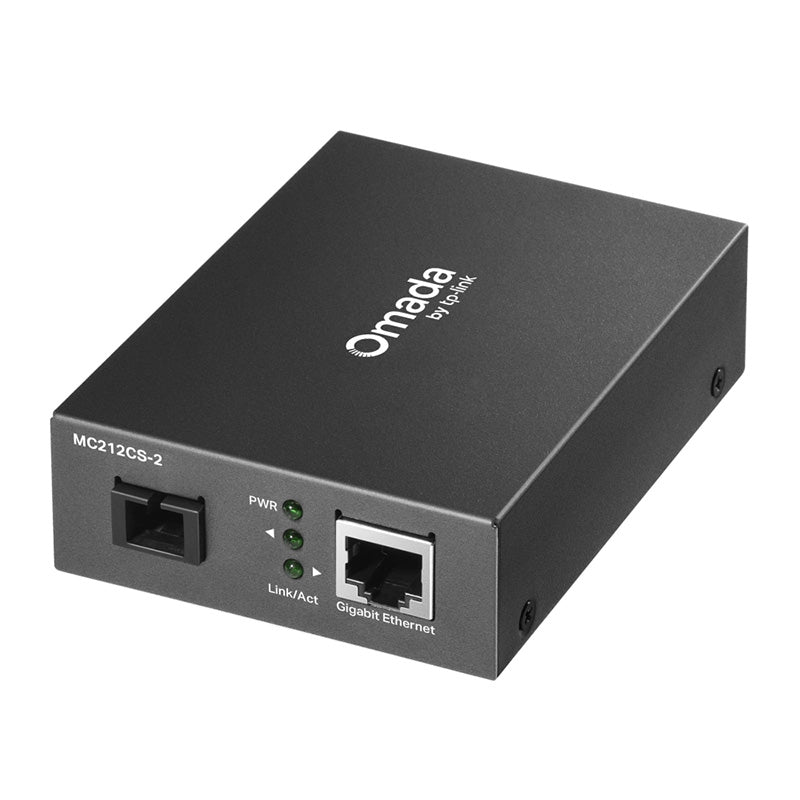

MC212CS-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
SPECIFICATIONS:
NETWORK |
|
Standards and Protocols |
IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
HARDWARE FEATURES |
|
Interface |
• 1× Gigabit SC/UPC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
Power Supply |
External Power Adapter: 9 V/0.6 A |
LED |
PWR, Link/Act |
Wave Length |
1310 nm TX, 1550 nm RX |
Dimensions ( W x D x H ) |
94.5x73x27 mm (37.2x28.7x10.6 in) |
ENVIRONMENT |
|
Operating Temperature |
-5˚C to 50˚C (23˚F to 122˚F) |
Storage Temperature |
-40˚C to 70˚C (-40˚F to 158˚F) |
Operating Humidity |
10% to 90% RH non-condensing |
Storage Humidity |
5% to 90% RH non-condensing |
OTHERS |
|
Package Content |
• Media Converter MC212CS-2 • Power Adapter • Installation Guide |
