HARDWARE FEATURES
|
|
|
Standards and Protocols
|
• IEEE 802.3, 802.3u, 802.3ab, IEEE 802.3x, IEEE 802.1q
• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, SNMP
|
|

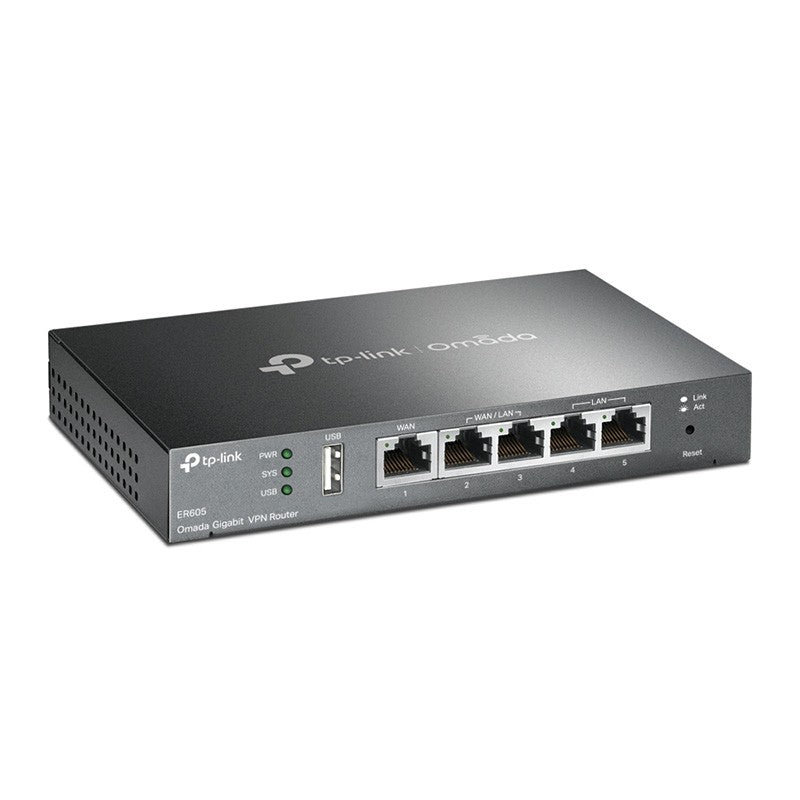

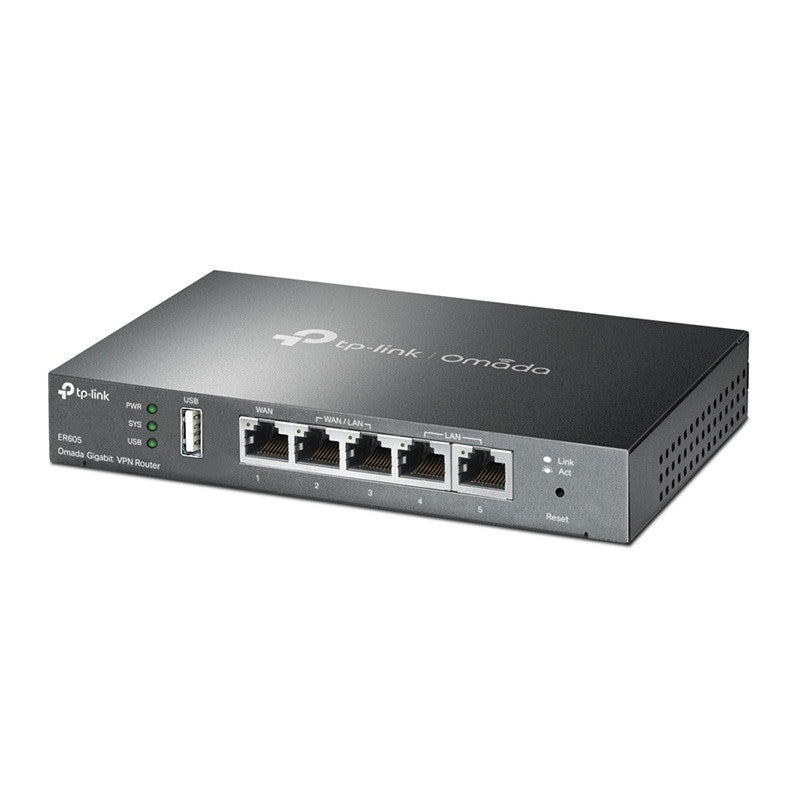

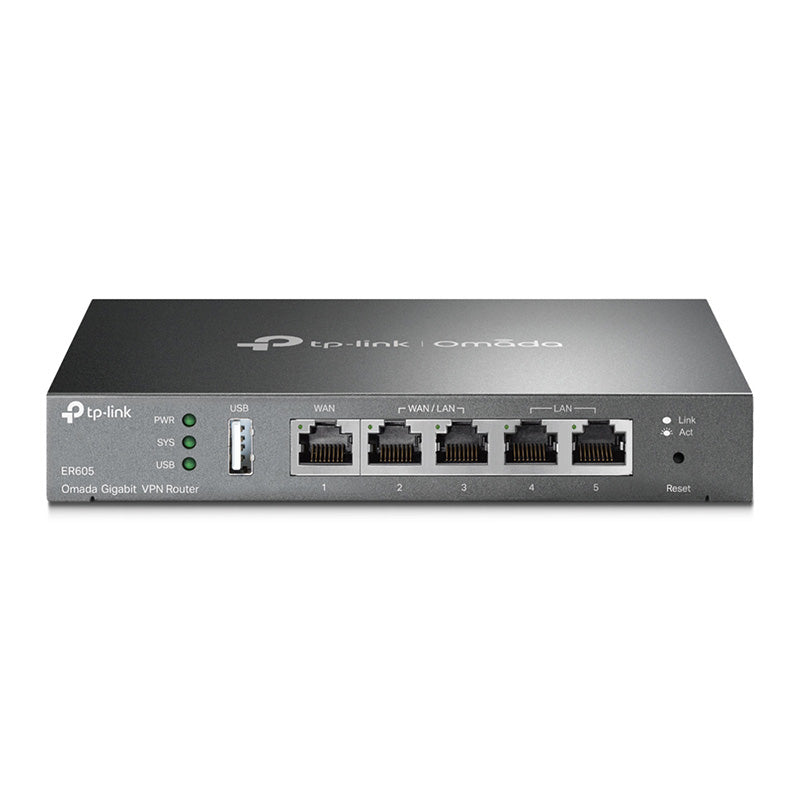

Interface
|
• 1 Fixed Gigabit WAN Port
• 2 Fixed Gigabit LAN Ports
• 2 Changeable Gigabit WAN/LAN Ports
• 1 USB 2.0 Port (Connecting 4G/3G Modem as WAN Backup)
|
|
Network Media
|
• 10BASE-T: UTP category 3, 4, 5 cable (Max 100m)
|
|
EIA/TIA-568 100Ω STP (Max 100m)
|
• 100BASE-TX: UTP category 5, 5e cable (Max 100m)
|
|
EIA/TIA-568 100Ω STP (Max 100m)
|
• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)
|
|
Button
|
Reset Button
|
|

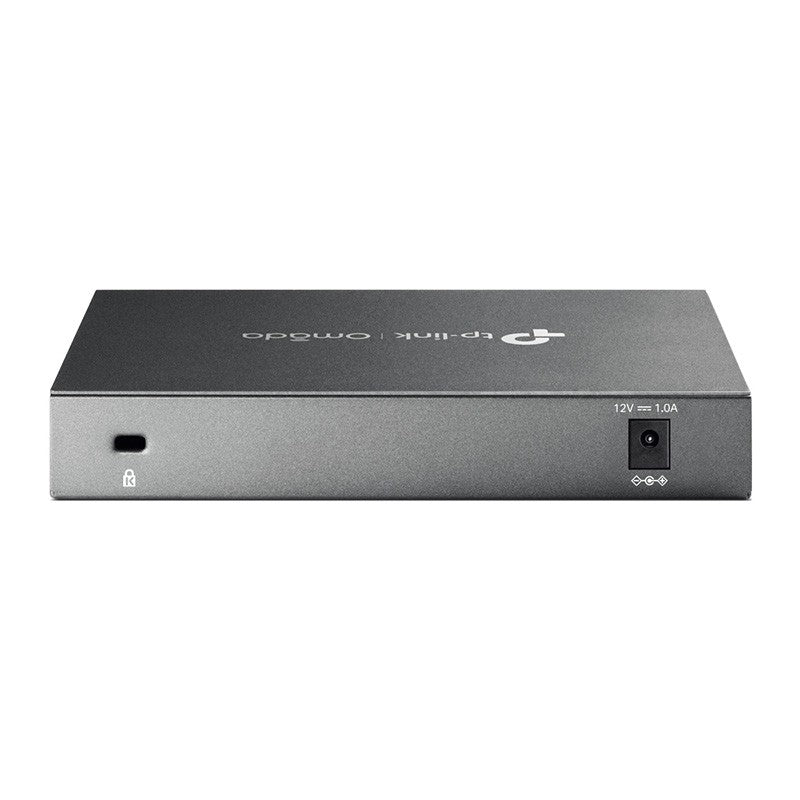

Power Supply
|
External 12V/1A DC Adapter
|
|
Flash
|
128 MB NAND
|
|
DRAM
|
256 MB DDR
|
|
LED
|
PWR, SYS, WAN (Link/Act), LAN (Link/Act), USB
|
|
Dimensions ( W x D x H )
|
6.2 × 4.0 × 1.0 in (158 × 101 × 25mm)
|
|
Max Power Consumption
|
7.94 W
|
|
PERFORMANCE
|
|
|
Concurrent Session
|
150,000
|
|
New Sessions /Second
|
2,600
|
|
NAT (Static IP)
|
• Upload: 945.77 Mbps
• Download: 945.56 Mbps
• Bi-Directional: 1808.29 Mbps
|
|
NAT(DHCP)
|
• Upload: 945.93 Mbps
• Download: 945.43 Mbps
• Bi-Directional: 1808.11 Mbps
|
|
NAT(PPPoE)
|
• Upload: 940.44Mbps
• Download: 940.52 Mbps
• Bi-Directional: 1804.27 Mbps
|
|
NAT (L2TP)
|
• Upload: 845.64 Mbps
• Download: 802.65 Mbps
• Bi-Directional: 931.96 Mbps
|
|
NAT (PPTP)
|
• Upload: 771.66 Mbps
• Download: 874.81 Mbps
• Bi-Directional: 999.54 Mbps
|
|
64 Byte Packet Forwarding Rate
|
• Upload/Download: 1,402,238 pps
• Bi-Directional: 1,681,548 pps
|
|
IPsec VPN Throughput
|
• ESP-MD5-AES256: 171.26 Mbps
• ESP-SHA1-AES256: 224.86 Mbps
• ESP-SHA2-AES256: 248.04 Mbps
|
|
OpenVPN
|
• 21.70 Mbps
|
|
L2TP VPN Throughput
|
• Unencrypted: 864.65 Mbps
• Encrypted: 47.11 Mbps
|
|
PPTP VPN Throughput
|
• Unencrypted: 703.20 Mbps
• Encrypted: 76.65 Mbps
|
|
BASIC FUNCTIONS
|
|
|
WAN Connection Type
|
• Static/Dynamic IP
• PPPoE
• PPTP
• L2TP
• Mobile Broadband: 4G/3G modem for backup via USB port
|
|
MAC Clone
|
Modify WAN/LAN MAC Address
|
|
DHCP
|
• DHCP Server/Client
• DHCP Address Reservation
• Multi-net DHCP*
• Multi-IP Interfaces*
|
|
IPv6
|
StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough
|
|
VLAN
|
802.1Q VLAN
|
|
IPTV
|
IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
|
|
ADVANCED FUNCTIONS
|
|
|
ACL
|
IP/Port/Protocol/Domain Name Filtering
|
|
Advanced Routing
|
• Static Routing
• Policy Routing
|
|
Bandwidth Control
|
IP-based Bandwidth Control
|
|
Load Balance
|
• Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing§, Failover)
• Online Detection
|
|
NAT
|
• One-to-One NAT§
• Multi-Net NAT
• Virtual Server
• Port Triggering§
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG, UPnP
|
|
Security
|
• SPI Firewall
• VPN Passthrough
• FTP/H.323/PPTP/SIP/IPsec ALG
• DoS Defence, Ping of Death
• Local Management
|
|
Session Limit
|
IP-based Session Limit
VPN
|
|
IPsec VPN
|
• 20 IPsec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IKEv1/v2
• MD5, SHA1 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
|
|
PPTP VPN
|
• PPTP VPN Server
• 10 PPTP VPN Clients**
• 16 Tunnels
• PPTP with MPPE Encryption
|
|
L2TP VPN
|
• L2TP VPN Server
• 10 L2TP VPN Clients**
• 16 Tunnels
• L2TP over IPSec
|
|
OpenVPN
|
• OpenVPN Server*
• 10 OpenVPN Clients*△
• 16 OpenVPN Tunnels*
|
|
SECURITY
|
|
|
Filtering
|
• WEB Group Filtering§
• URL Filtering
• Web Security§
|
|
ARP Inspection
|
• Sending GARP Packets§
• ARP Scanning§
• IP-MAC Binding§
|
|
Attack Defense
|
• TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
|
|
Access Control
|
Source/Destination IP Based Access Control
|
|
AUTHENTICATION
|
|
|
Web Authentication
|
• No Authentication
• Simple Password*
• Hotspot（Local User / Voucher* / SMS* / Radius*）
• External Radius Sever
• External Portal Sever*
• Facebook*
|
|
MANAGEMENT
|
|
|
Omada App
|
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
|
|
Centralized Management
|
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
|
|
Cloud Access
|
Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
|
|
Service
|
Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe)
|
|
Maintenance
|
• Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)§
• NTP Synchronize§
• Syslog Support
|
|
Zero-Touch Provisioning
|
Yes. Requiring the use of Omada Cloud-Based Controller.
|
|
Management Features
|
• Automatic Device Discovery
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration
|
|
OTHERS
|
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
• Gigabti VPN Router ER605 V2
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
|
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11, MAC OS, NetWare, UNIX or Linux
|
|
Environment
|
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
|
