TP-Link TL-SG1024 24 Port Gigabit 10/100/1000 Switch RackMount - OPENED BOX 69917


Price:
Sale price$130.57
 More payment options

Description

Product Name: TP-Link TL-SG1024 24 Port Gigabit 10/100/1000 Switch RackMount - OPENED BOX 69917
Model Number: TL-SG1024-69917
Brand: TP-Link
Manufacturer Warranty: 1 Year-
Icon  Product condition:  OPENED BOX
This item is in excellent, new or like-new condition with no or minimal wear, Depending on the manufacturer or supplier, this item is either covered by original manufacturer’s warranty or three months standard warranty provided by PCByte. This item may be missing the original packaging or protective wrapping, or may be in the original packaging but not sealed, but we guarantee the item is well-packed with sufficient protection during order collection or delivery. This item may be missing original or minor accessories but we will provide necessary components to make sure the major element(s) is/are fully functional.

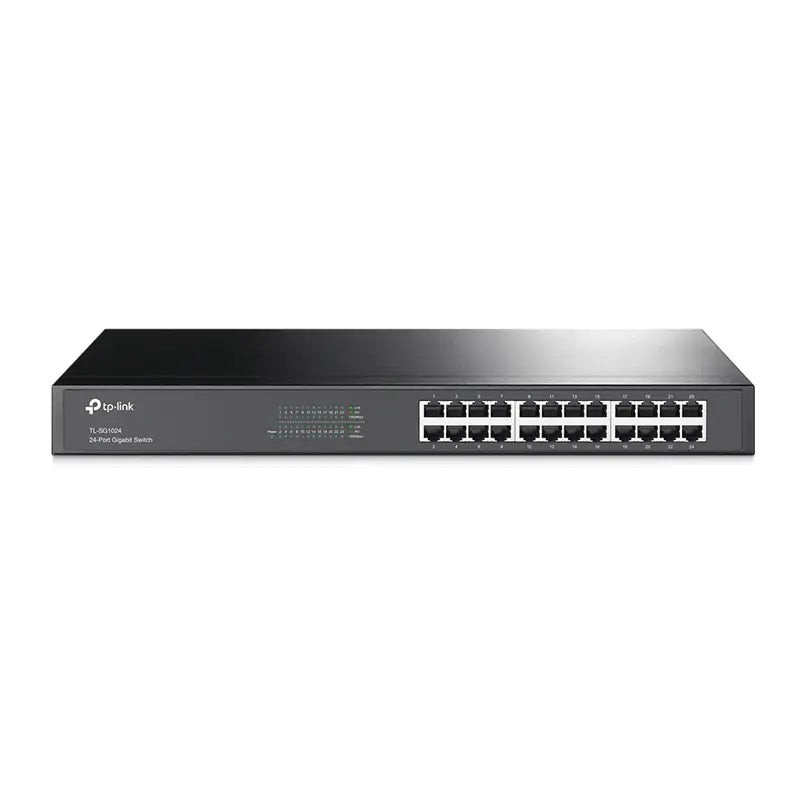

The TL-SG1024 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


  • 24 10/100/1000Mbps RJ45 ports

  • Innovative energy-efficient technology saves power consumption

  • Supports MAC address self-learning and auto MDI/MDIX

  • Standard 19-inch rack-mountable steel case







SPECIFICATIONS:

HARDWARE FEATURES


Standards and protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan quantity

Fanless

Power supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

17.3*7.1*1.7 in. (440*180*44 mm)

Mounting

Rack Mountable

Max power consumption

13.08W(220V/50Hz)

Max heat dissipation

44.63BTU/h

PERFORMANCE


Switching capacity

48Gbps

Packet forwarding rate

35.7Mpps

MAC address table

8K

Jumbo frame

10KB

QOS

802.1p/DSCP QoS*

*Only for V11 and later version

Green technology

Yes

Transfer method

Store-and-Forward

OTHERS


Certification

FCC, CE, RoHS

Package contents

24-Port Gigabit Rackmount Switch

Power Cord

Installation Guide

Rackmount Kits

Rubber Feet

Environment

Operating Temperature: 0~40   (32~104);

Storage Temperature: -40~70   (-40~158);

Operating Humidity: 10%~90% non-condensing;

Storage Humidity: 5%~90% non-condensing
