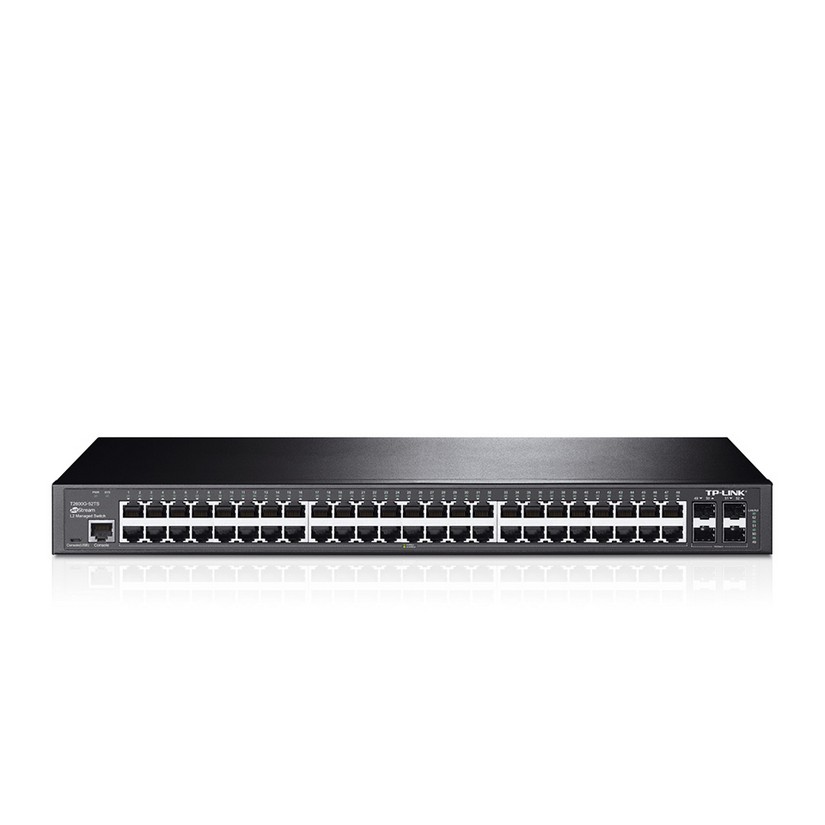

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP SlotsT2600G-52TS (TL-SG3452)
-
Gigabit Ethernet connections on all ports provide full speed of data transferring
-
L2+ feature””Static Routing, helps route internal traffic for more efficient use of network resources
-
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X Authentication and Radius provide you robust security strategies
-
L2/L3/L4 QoS and IGMP snooping optimize voice and video application
-
IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
-
Web, CLI (Console Port, Telnet, SSH), SNMP, RMON and Dual Image bring abundant management policies.
|
|
| Offical Product Link |
Open Link |
| Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p |
| Interface |
48 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 1000Mbps SFP Slots
1 RJ45 Console Port
1 Micro-USB Console Port |
| Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF |
| HARDWARE FEATURES |
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
Power Consumption Maximum: 33.52W (220V/50Hz)
Dimensions ( W x D x H ) 17.32 * 8.7 * 1.73 in. (440 * 220 * 44 mm) |
| PERFORMANCE |
Bandwidth/Backplane 104Gbps
Packet Forwarding Rate 77.4Mpps
MAC Address Table 16k
Jumbo Frame 9216 Bytes |
| Quality of Service |
Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
Voice VLAN |
| L2 and L2+ Features |
Static RoutingDHCP Relay*
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
L2PT* |
| VLAN |
Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
Port/ MAC/Protocol-based/Private VLAN
GARP/GVRP |
| Access Control List |
L2L4 package filtering based on source and destination MAC address,
IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
Time Range Based |
| Security |
IP-MAC-Port-VID Binding
AAA*
802.1x and Radius Authentication
DoS Defend
Dynamic ARP inspection (DAI)
SSH v1/v2
SSL v3/TLSv1
Port Security
Broadcast/Multicast/Unknown-unicast Storm Control |
| IPv6 |
Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
|
| IPv6 Applications |
DHCPv6 Client
Ping6
Tracert6
Telnet(v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
IPv6 ACL*
IPv6 Interface*
IPv6 Routing*
DHCPv6 Relay*
DHCPv6 Snooping* |
| Management |
Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
sFlow*
PPPoE Circuit ID*
DHCP Relay*
DHCP Server*
DHCP/BOOTP Client, DHCP Snooping, DHCP Option82
Dual Image
CPU Monitoring
Port Mirroring
Time Setting: SNTP
Integrated NDP/NTDP feature
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Password Recovery* |
| Certification |
CE, FCC, RoHS |
| Package Contents |
JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots T2600G-52TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet |
| System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
Operating Temperature: 0ƒ~40ƒ (32‰~104‰);
Storage Temperature: -40ƒ~70ƒ (-40‰~158‰)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
