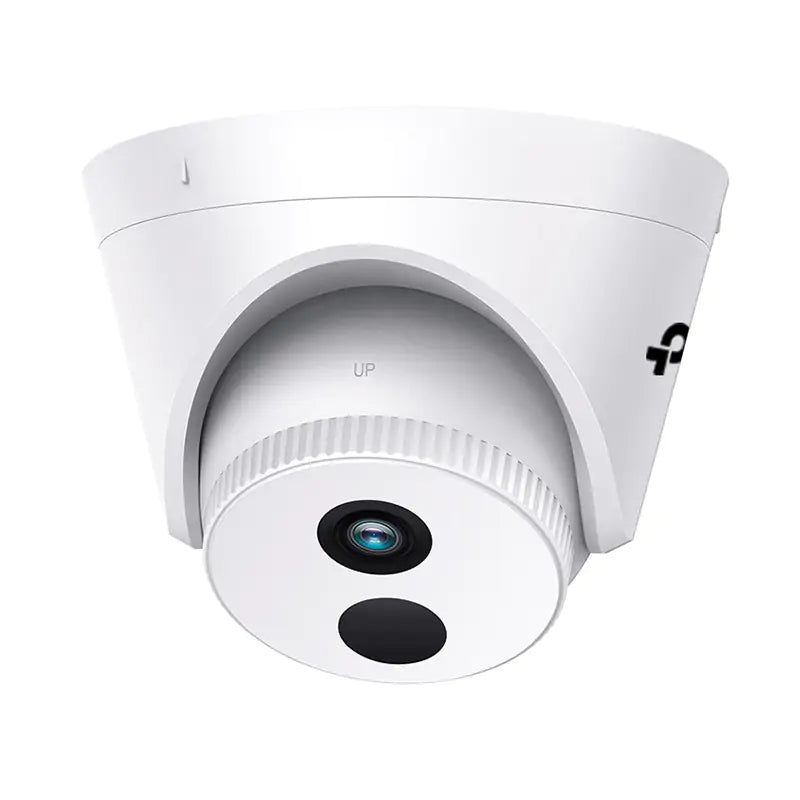

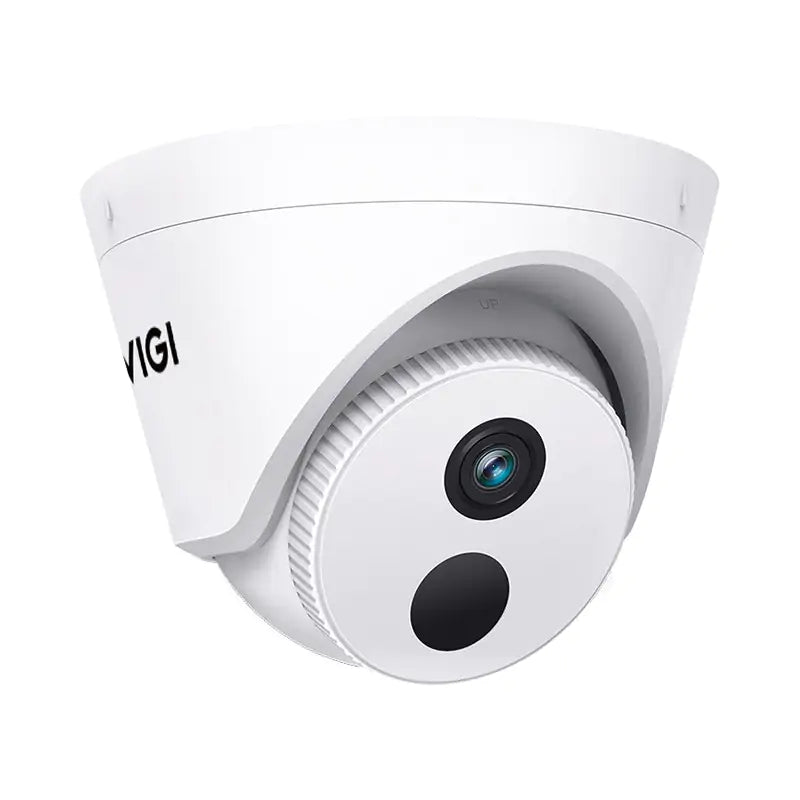

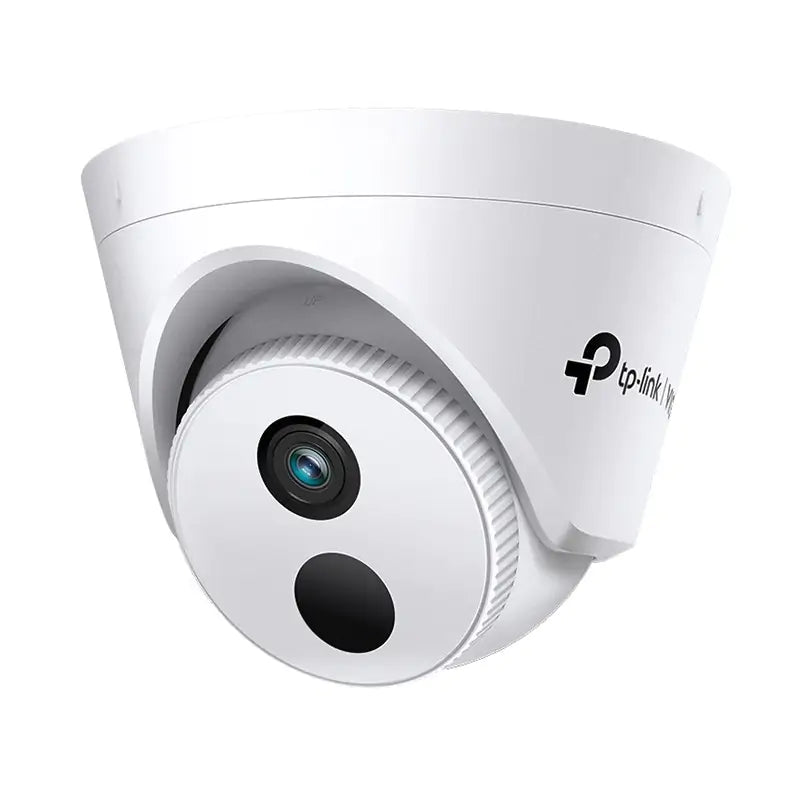

TP-Link VIGI 3MP Turret Network Camera with 4mm Lens

Image Sensor

1/2.7” Progressive Scan CMOS

Minimum Illumination

Color: 0.1 Lux@F2.0; 0 Lux with IR

Day/Night Mechanism

IR Cut Filter

Lens

4 mm

Aperture

F2.4

Lens Mount

M12

Viewing Angle

4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°

IR Working Distance

30m

Pan/Tilt Range

Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Digital Noise Reduction

3D DNR

WDR

DWDR

NETWORK

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Button

-

Video Output

-

GENERAL

Package Contents

VIGI Network Camera

Quick Start Guide

Mounting Accessories

Certification

CE, FCC, RCM, BSMI, VCCI, RoHS

Dimensions( H X W X D )

123 × 123 × 83 mm

Material

Plastic

Weight

195 g

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

Power Supply

12V DC ± 5%, 5.5mm Coaxial Power Plug

PoE (802.3af/at, class 0)

Power Consumption

12V DC: Max 2.4W

PoE: Max 3W

Certifications

CE, FCC, RCM, BSMI, VCCI, RoHS

VIDEO/IMAGE

Video Compression

Main stream: H.265/H.264

Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Video Bit Rate

64 Kbps to 6 Mbps

SMART FEATURE-SET

Smart Event

Area Intrusion Detection, Line-Crossing Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

Region of Interest

1 Region
