TP-Link Whole-Home Mesh Wi-Fi System Router )

Standards and Protocols

Wi-Fi 5

IEEE 802.11ac/n/a 5 GHz

IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AC1300

5 GHz: 867 Mbps (802.11ac)

2.4 GHz: 400 Mbps (802.11n)

WiFi Range

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

4× Antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

Medium

Dual-Band

Distribute devices to different bands for optimal performance

MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients

Working Modes

Router Mode

Access Point Mode

SECURITY

Network Security

SPI Firewall

Access Control

HomeCare™ Antivirus

Malicious Site Checker

Port Intrusion Prevention

Infected Device Isolation

Notification and Log

Guest Network

1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

WiFi Encryption

WPA-Personal

WPA2-Personal

HARDWARE

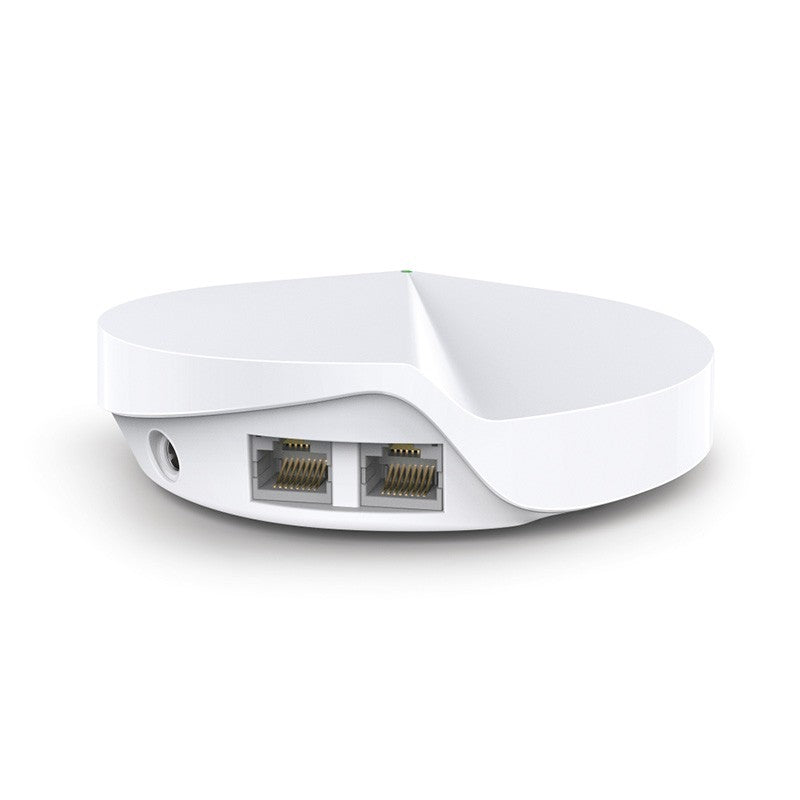

Ethernet Ports

2× Gigabit Ports

*Per Deco Unit

Supports WAN/LAN auto-sensing

Buttons

Reset Button

SOFTWARE

Protocols

IPv4

IPv6

Service Kits

HomeCare™

Parental Controls

HomeCare™ Parental Controls

Custom Profiles

Content Filtering

URL FIltering

Time Limit

Time Schedule (Bed Time)

Log Insight

Usage Monitor

Monthly Reports

WAN Types

Dynamic IP

Static IP

PPPoE

PPTP

L2TP

Quality of Service

HomeCare™ QoS

QoS by Device

QoS by Application

Cloud Service

OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding

Port Forwarding

UPnP

IPTV

IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP

Address Reservation

DHCP Client List

Server

DDNS

TP-Link

Management Features

Deco App

TEST DATA

WiFi Transmission Power

CE:

<20 dBm (2.4 GHz)

<23 dBm (5 GHz)

FCC:

<30 dBm

PHYSICAL

Dimensions (W×D×H)

4.7 × 4.7 × 1.5 in

(120 × 120 × 38 mm)

Package Content

Deco M5 (1-pack)

1 Deco M5 Unit

1 RJ45 Ethernet Cable

1 Power Adapter

1 Quick Installation Guide

OTHERS

System Requirements

Android 5.0 or later

iOS 9.0 or later

*Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications

CE, FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃   (-40℉   ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
