Description
SPECIFICATIONS:
WIRELESS |
|
Working Modes |
Range Extender/Access Point |
HARDWARE FEATURES |
|
Plug Type |
AU |
Ports |
1 x 10/100Mbps Ethernet Port (RJ45) |
Button |
WPS Button, Reset Button |
Input Power |
100-240V~50/60Hz |
Power Consumption |
7.3W（max power consumption） |
Dimensions ( W x D x H ) |
3.1 x 3.0 x 3.0 in. (80 x 78 x 77mm) |
Antenna |
2 External Antennas |
WIRELESS FEATURES |
|
Frequency |
2.4GHz and 5GHz |
Signal Rate |
300Mbps at 2.4GHz, 433Mbps at 5GHz |
Reception Sensitivity |
5GHz: 11a 6Mbps: -94dBm 11a 54Mbps: -77dBm 11ac HT20: -69dBm 11ac HT40: -66dBm 11ac HT80: -63dBm
2.4GHz: 11g 54Mbps: -79dBm 11n HT20: -77dBm 11n HT40: -74dBm |
Wireless Functions |
Enable/Disable Wireless Radio DFS (the latest firmware and hardware version is required) Access Control LED Control Power Schedule Wi-Fi Coverage |
Wireless Security |
64/128-bit WEP WPA-PSK / WPA2-PSK |
Transmission Power |
2.4G<19.5dBm, 5G<19.5dBm |
OTHERS |
|
Certification |
CE, FCC, RoHS |
Package Contents |

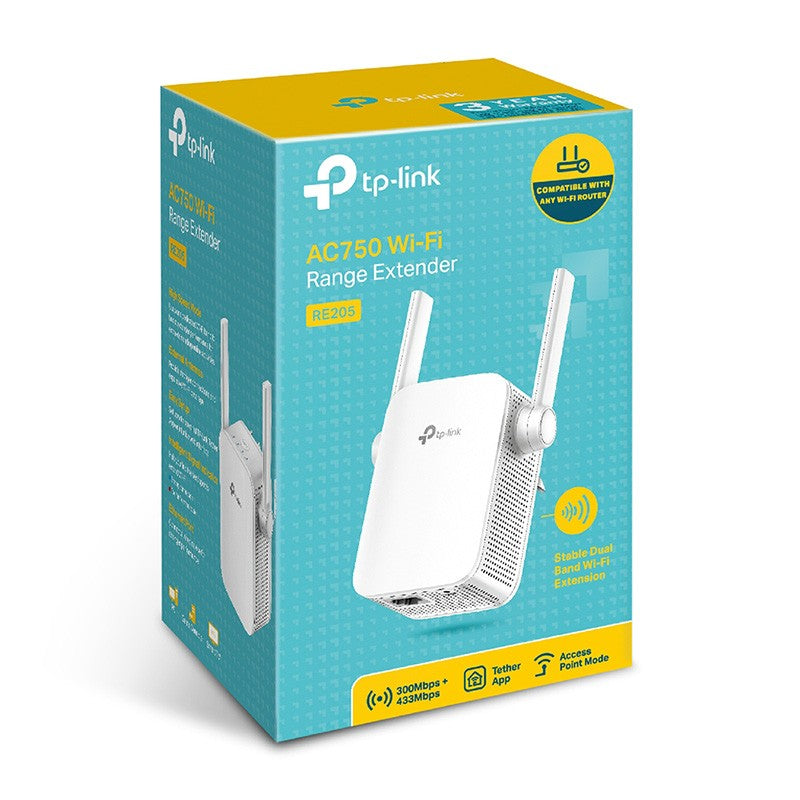

AC750 Wi-Fi Range Extender RE205 Quick Installation Guide |
Box Dimensions (W X D X H) |
6.15 x 4 x 3.7 in. (156.5 x 101.5 x 95mm) |
System Requirements |
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
Environment |
Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
