SPECIFICATIONS:
MECHANICAL |
|
Dimensions |
294 x 31 x 80 mm (11.6 x 1.3 x 3.2") |
Weight |
400 g (14.1 oz) |
Enclosure material |
Outdoor UV-stabilized plastic |

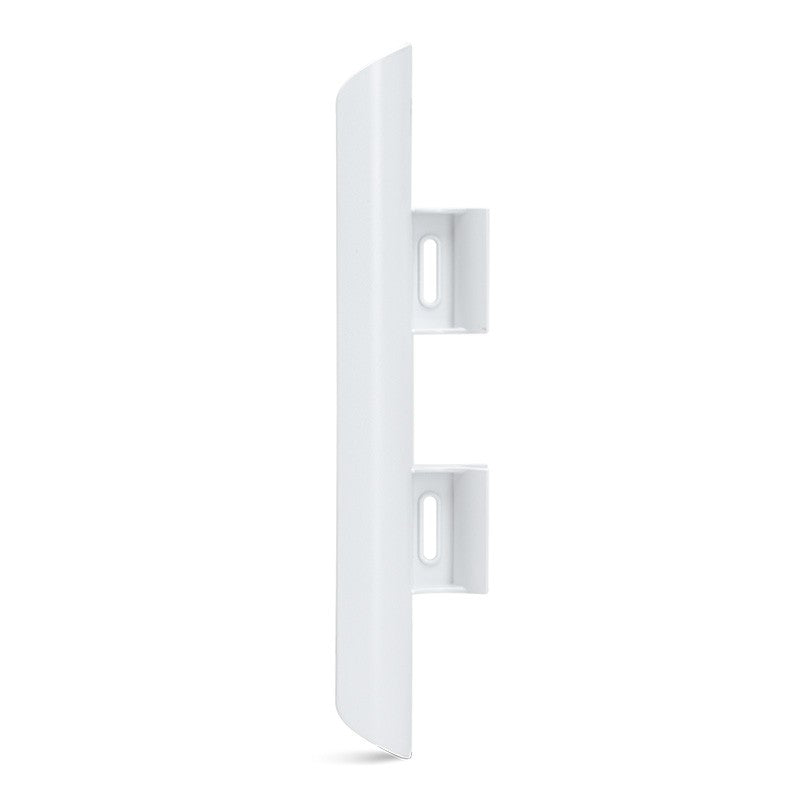

Mounting |
Pole-mount (Kit included) |
HARDWARE |
|
Networking interface |
(2) 10/100 MbE RJ45 ports |
Power method |
Passive PoE 2-pair (4, 5+; 7, 8 return) |
Power supply |
24V, 0.5A PoE adapter (Included) |
Supported voltage range |
22–27V DC |
Max. power consumption |
8W |
Ambient operating temperature |
-30 to 75° C (-22 to 167° F) |
Operating Humidity |
5 to 95% noncondensing |
Shock & vibration |
ETSI300-019-1.4 |
Certifications |
FCC, ICC, CE, RoHS |
SYSTEM |
|
Frequency |
5 GHz |
Operating frequency |
|
Gain |
14.6-16.1 dBi |
Cross-pol isolation |
22 dB Min. |
Max. VSWR |
1.6:1 |
Beamwidth |
43° (H-pol) / 41° (V-pol) / 15° (Elevation) |
Polarization |
Dual Linear |
