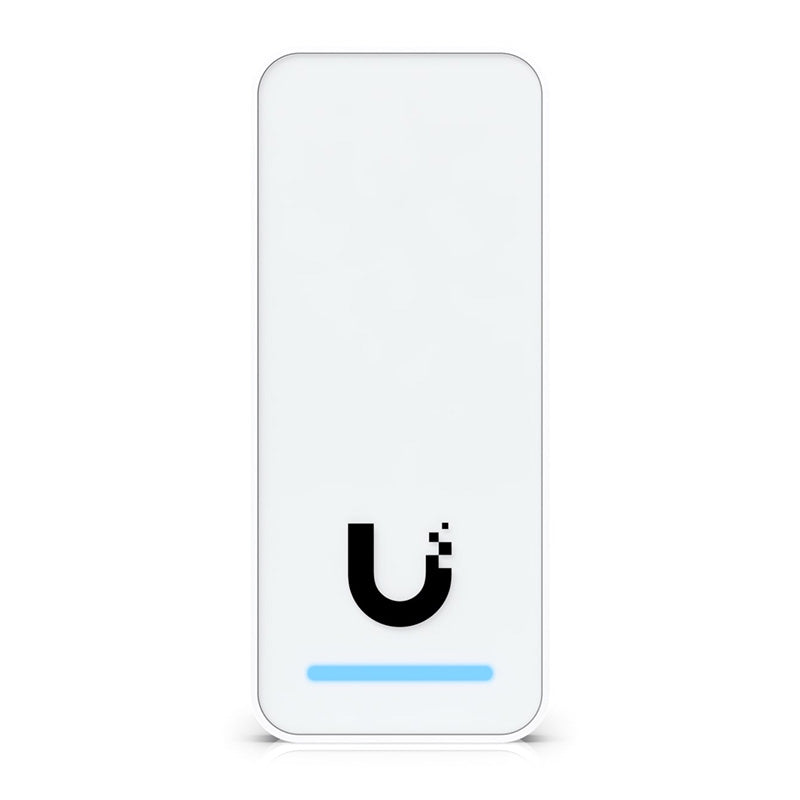

Ubiquiti Access Reader G2 Compact 2nd Gen NFC Card Reader

Dimensions

93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4")

Weight

82 g (2.9 oz)

Enclosure material

Polycarbonate, glass

Mounting

In wall, gang box

Weatherproofing

IP55

HARDWARE

Networking interface

(1) 10/100 MbE RJ45 port

Connectivity

BLE 4.1

Power method

PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU

Supported voltage range

48V DC

Max. power consumption

5W

ESD/EMP protection

Air: ±15kV, contact: ±8kV

Sensors

Proximity sensor

Speaker

(1) 8 ohm, 0.7W

LEDs

R/G/B/W

Button

(1) Factory-reset

NFC frequency

13.56 MHz

NFC read range

< 30 mm

NFC standards

ISO 14443A, 14443B, 15693

NFC technology

NFC Tag 1,2,3,4,5
MIFARE Classic
MIFAREPlus
MIFARE Ultralight
MIFARE DESFire

Operating environment

Outdoor use

Operating temperature

-30 to 45° C (-22 to 113° F)

Operating humidity

5 to 90% noncondensing

UL 294 level

Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I

UL 294 statement

Compliance with IEEE 802.3 specifications was   not verified as part of UL 294.
  The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

PoE cabling requirements

Cable 5e cabling is the minimum   performance category recommended. The performance category utilized should   match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

LED

System

Steady blue: Adopted/device is ready
Steady white: Pending adoption
Blinking white/blue: Upgrading firmware
Strobing red: Emergency lockdown

SOFTWARE

Management application

UniFi Access: Version 1.5.9 and later
