Description
SPECIFICATIONS:
MECHANICAL |
|
Dimensions |
93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4") |
Weight |
82 g (2.9 oz) |
Enclosure material |
Polycarbonate, glass |
Mounting |
In wall, gang box |
Weatherproofing |
IP55 |
HARDWARE |
|
Networking interface |

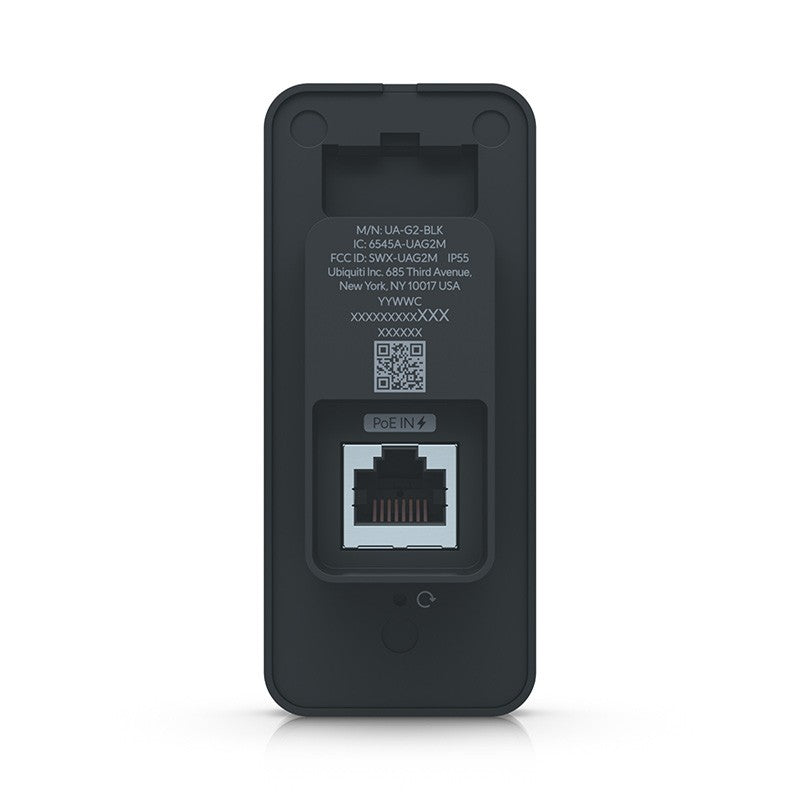

(1) 10/100 MbE RJ45 port |
Connectivity |
BLE 4.1 |
Power method |
PoE |
Supported voltage range |
48V DC |
Max. power consumption |
5W |
ESD/EMP protection |
Air: ±15kV, contact: ±8kV |
Sensors |
Proximity sensor |
Speaker |
(1) 8 ohm, 0.7W |
LEDs |
R/G/B/W |
Button |
(1) Factory-reset |
NFC frequency |
13.56 MHz |
NFC read range |
< 30 mm |
NFC standards |
ISO 14443A, 14443B, 15693 |
NFC technology |
NFC Tag 1,2,3,4,5 MIFARE Classic MIFAREPlus MIFARE Ultralight MIFARE DESFire |
Operating temperature |
-30 to 45° C (-22 to 113° F) |
Operating humidity |
5 to 90% noncondensing |
Certifications |
CE, FCC, IC |
SOFTWARE |
|
Management application |
UniFi Access: Version 1.5.9 and later |
