Description

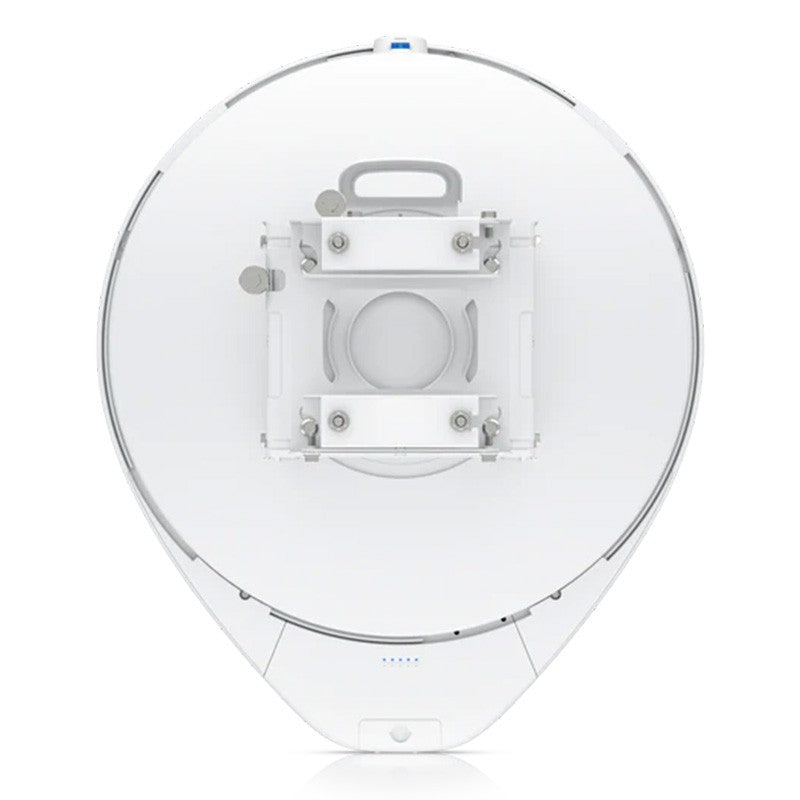

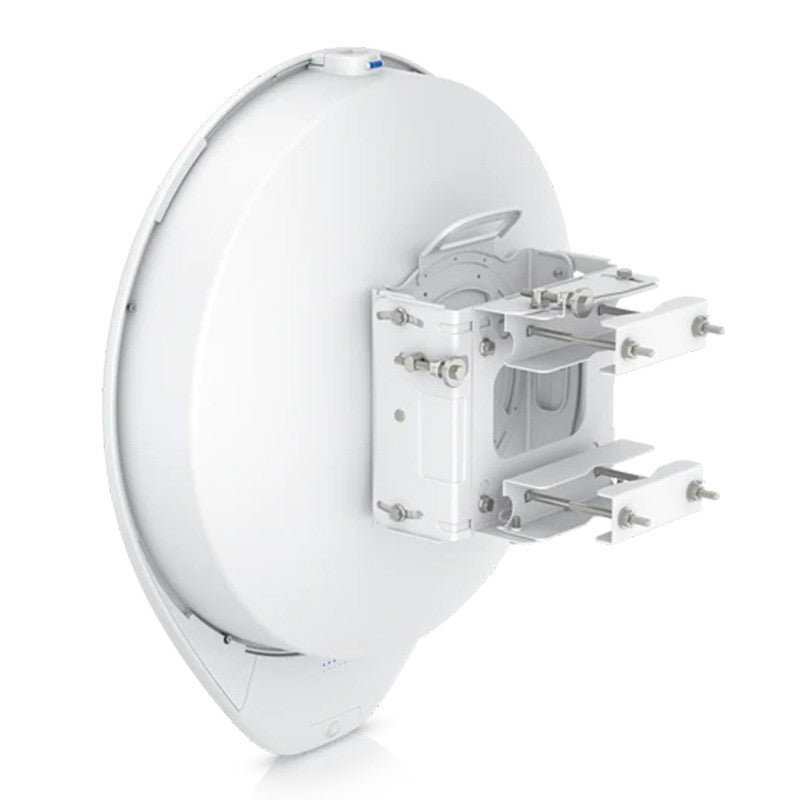

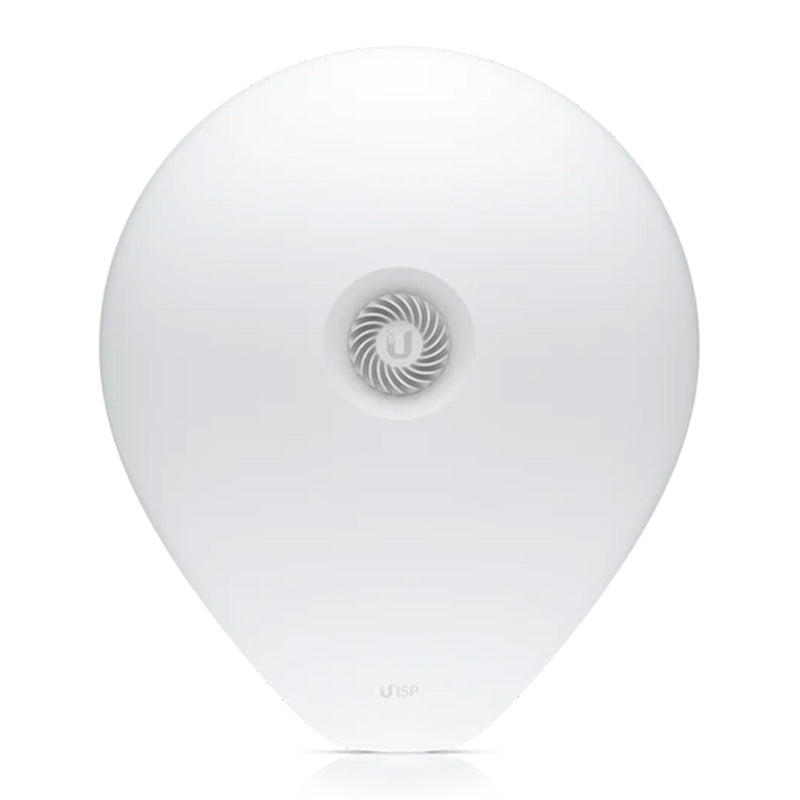

UISP airFiber 60 XG
The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point (PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and configuration.
Features:
Low-interference, 60 GHz spectrum
High-gain dish antenna
5 GHz backup radio
4+ km link range
Supports channel bonding to achieve up to a 6 Gbps throughput rate
Terragraph-certified
10G SFP+ port
Integrated GPS
Link planning support via ISP Design Center
Simple, Bluetooth-powered setup with the UISP® Mobile app
SPECIFICATIONS:
MECHANICAL |
|
Dimensions |
779 x 664 x 383 mm (30.68 x 26.14 x 15.06") |
Weight |
Without mount: 8.6 kg (19 lb) |
Enclosure materials |
UV stabilized polycarbonate, steel |
Mount material |
Galvanized steel |
Mount |
Precision Alignment Kit (included) |
Wind loading |
422 N at 200 km/h (94.86 lbf at 125 mph) |
HARDWARE |
|
Processor |
Quad-Core ARM® Cortex® A72 at 1.6 GHz |
Memory |
2 GB DDR4 |
Networking interfaces |
(1) GbE RJ45 port |
Button |
Factory reset |
RF connections |
Internal |
Max. power consumption |
31.2W |
Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-) |
Power supply |
48VDC, 0.65A Gigabit PoE adapter (included) |
Supported voltage range |
48VDC ± 10% |
Operating temperature |
-40 to 55° C (-40 to 131° F) |
Operating humidity |
5 to 95% noncondensing |
Certifications |
FCC, IC, CE, terragraph |
LEDS |
|
Power |
Flashing white: bootup in progress |
Ethernet |
Flashing blue: ethernet activity |
GPS |
Blue: receiving at least (4) GPS satellite signals |
60G |
Blue: active connection |
5G |
Blue: active connection |
SYSTEM |
|
Maximum throughput |
5 GHz: 866.6 Mbps |
Maximum range |
4 km |
Encryption |
WPA2-PSK (AES) |
SOFTWARE |
|
OS |
airFiber® |
Modes |
PtP only |
Services |
UISP, ping watchdog, NTP client, system log |
Utilities |
Antenna alignment tool, discovery utility, ping, speed test |
Management interface |
Bluetooth management for easy setup over UISP App |
Minimum software requirements |
Modern Web browser or Android/iOS smartphone |
