Description

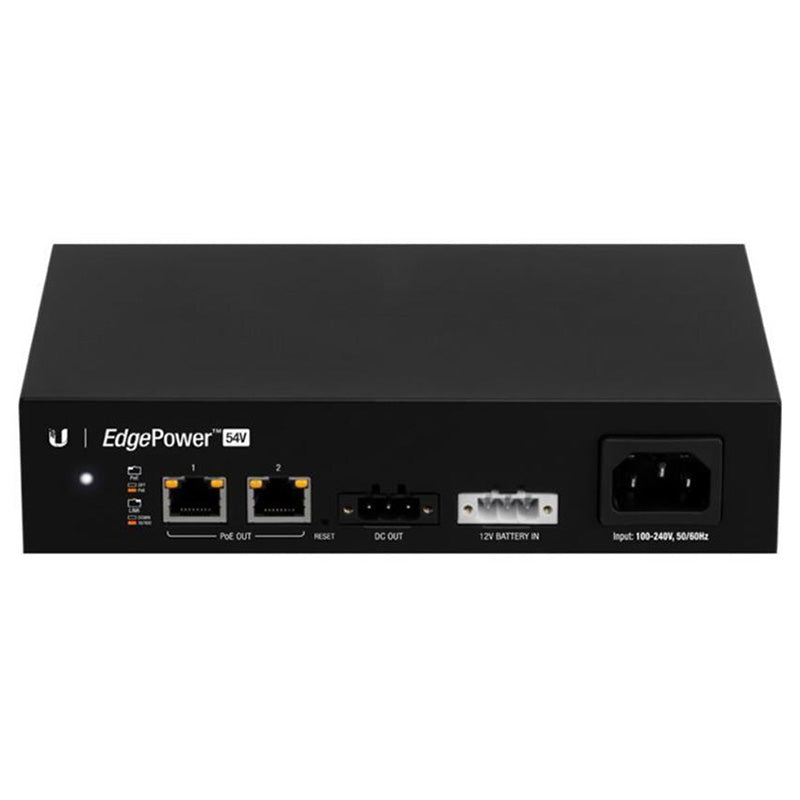

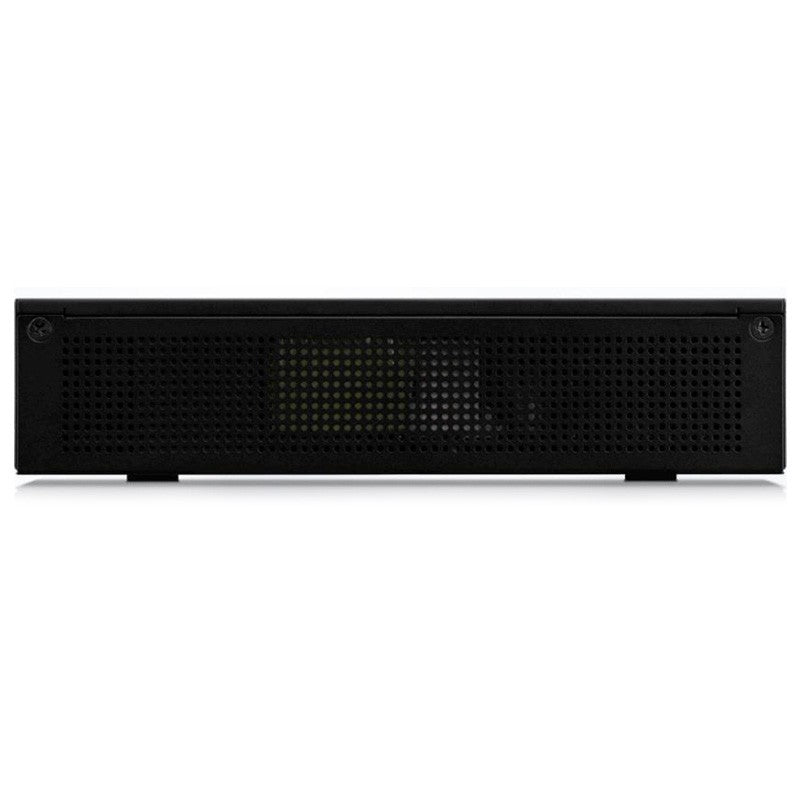

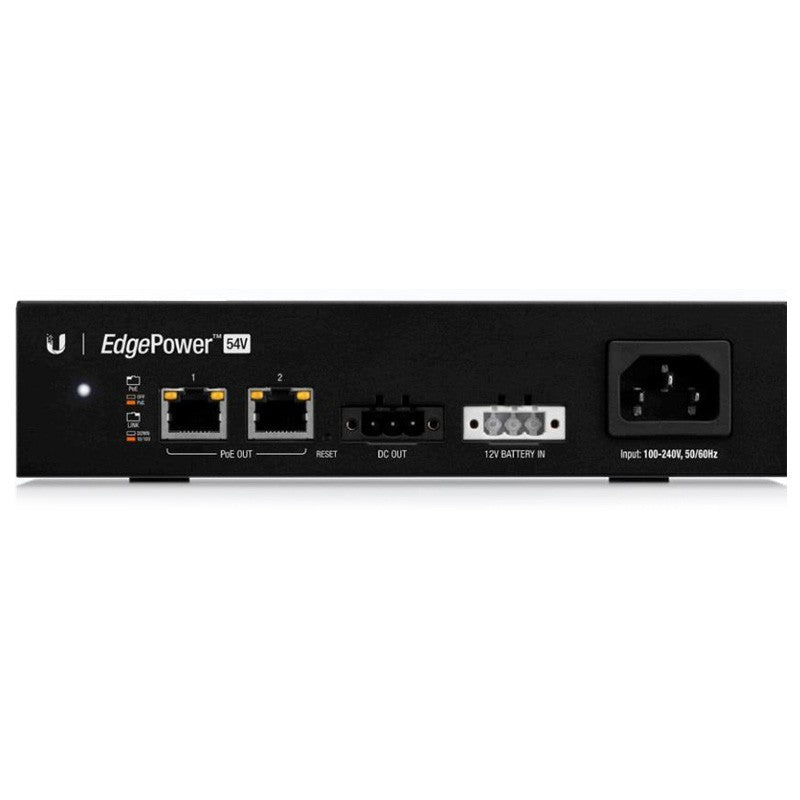

Ubiquiti EdgePower 54V 72W Power Supply
The EdgePower 54V 72W is a UNMS monitored and managed 54V DC power supply with integrated battery backup.
This product provides WISPs with an easy-to-install 54V redundant power supply that includes a management user interface, SNMP, and simple 12V battery backup charger with multiple 54V outputs for small sites.
SPECIFICATIONS:
Dimensions |
115 x 192 x 43.7 mm (4.53 x 7.56 x 1.72") |
Weight |
650 g (1.43 lb) |
|
Interfaces Networking Management |
2) 10/100 Mbps RJ45 Ports Ethernet In-Band |
PoE Output |
(2) 54VDC Passive PoE (Pins 4, 5+; 7, 8-) |
DC Output |
54V, 1.3A |
|
Power Method AC Input Battery Input |
100-240VAC, 50-60 Hz, Universal Input DC Terminal Block |
|
Power Supply AC Input Battery Input |
AC/DC 72W 12VDC Lead Acid Battery* *Battery not included. Connect to a lead-acid battery only. Using another battery type could be hazardous. |
|
Max. Power Consumption System Output |
2W 72W |
|
LEDs System RJ45 Data Ports |
Status PoE; Link/Activity |
ESD/EMP Protection |
Air: ± 12 kV, Contact: ± 12 kV |
Operating Temperature |
0 to 40° C (32 to 104° F) |
Operating Humidity |
10 to 90% Noncondensing |
Certifications |
CE, FCC, IC |
