Description
|

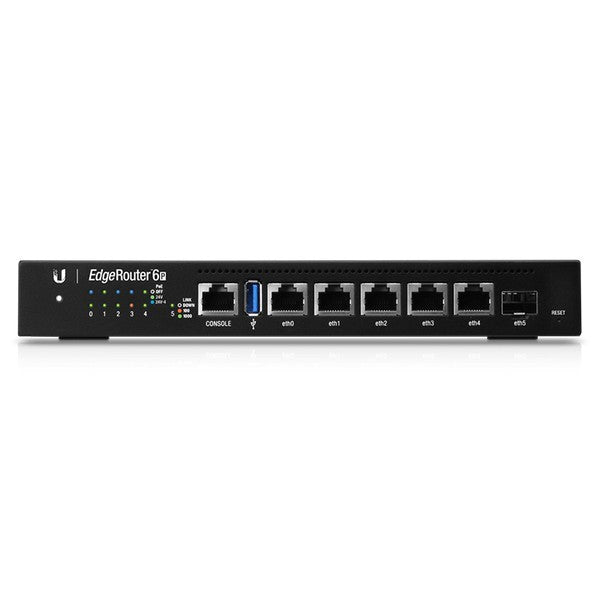

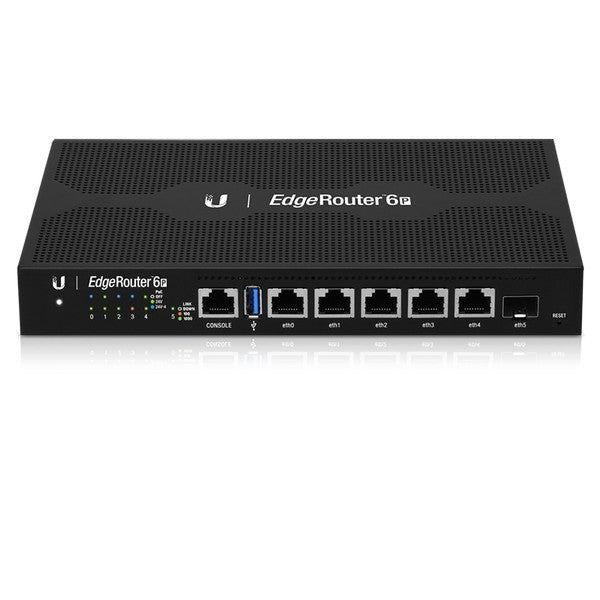

ER-6P The all-new EdgeRouter 6 brings high-performance at disruptive pricing to a new level. With a 50% increase in performance compared to the EdgeRouter Pro, the EdgeRouter 6 delivers the performance your network needs. Paired with our feature-rich EdgeOS makes this a versatile tool in both Carrier-Grade and Enterprise networks. |
| Official Product Link | Open Link |
| Features | New Design (5) 10/100/1000 Mbps Ethernet Ports and (1) SFP Port 24V PoE Output 4-Core 1GHz MIPS64 Processor External 24V 2.5A power supply Fanless Desk, Wall, and RackMount options* |
| ER-6 | Dimensions 11.25" x 2.5" x 9.75" Weight 3.45 lbs Enclosure Characteristics Metal Housing with Black Powder Coat |
| Processor | 4-Core 1GHz MIPS64 |
| System Memory | 1GB DDR3 |
| On-Board Flash Storage | 4GB eMMC, 8MB SPI NOR |
| Max. Power Consumption | 16W |
| Supported Voltage Range | 24V: 27V~21V |
| Networking Interfaces | (1) RJ45 Serial Port (5) 10/100/1000 Ethernet Router Ports (1) 1Gbps SFP Ethernet Router Port (1) USB 3.0 reserved for future |
| PoE Interfaces | (5) 24V Passive PoE ports (2-pair and 4-pair) |
| Mangement Interface | (1) RJ45 Serial Port (6) Ethernet Ports, (default eth0) |
