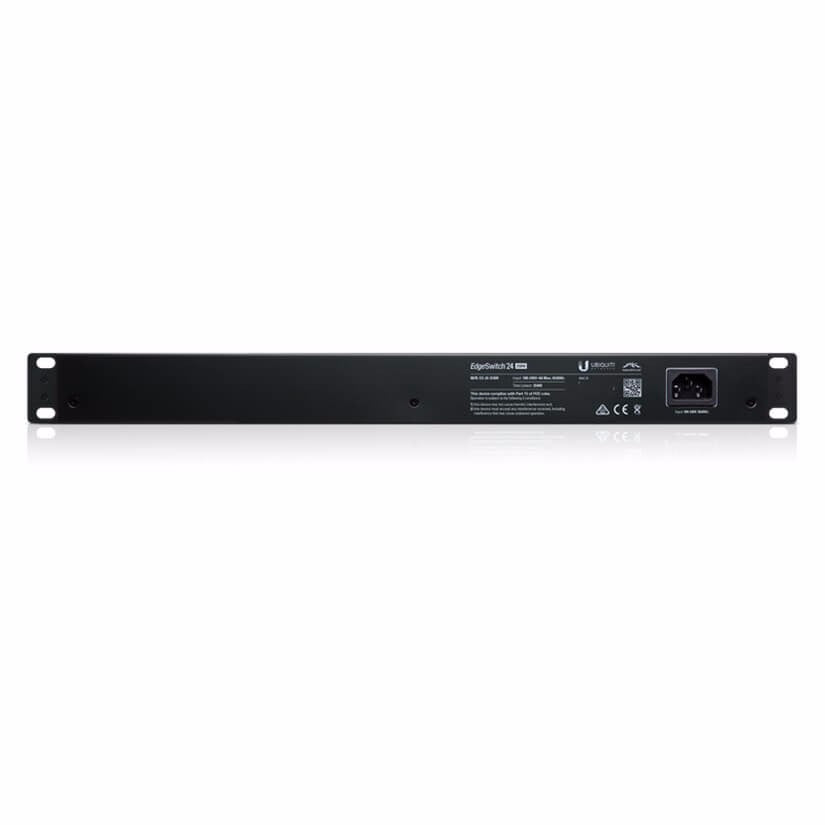

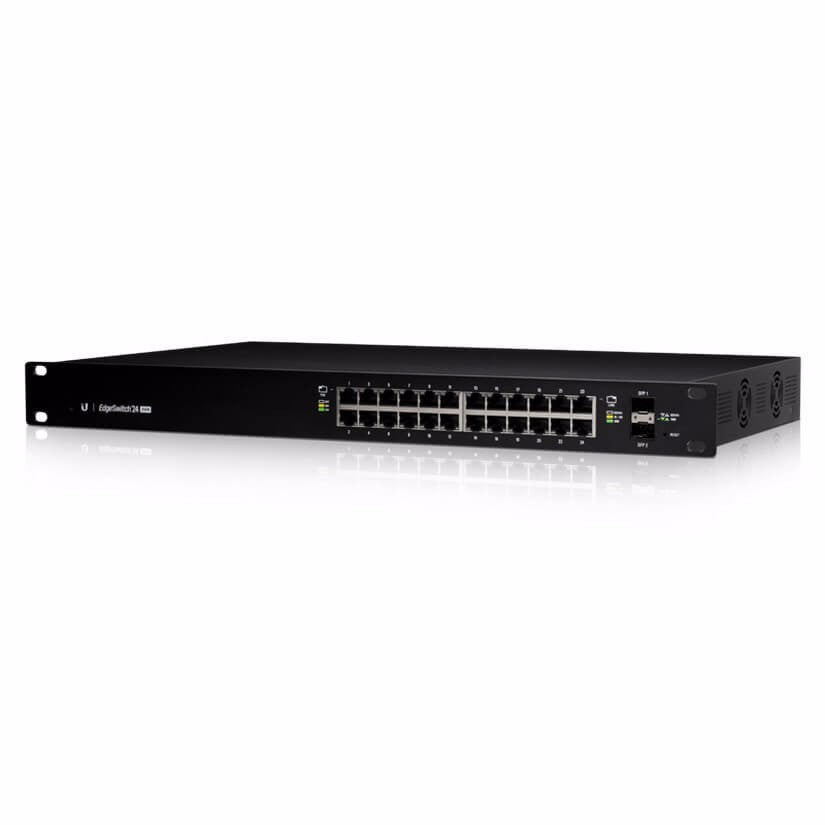

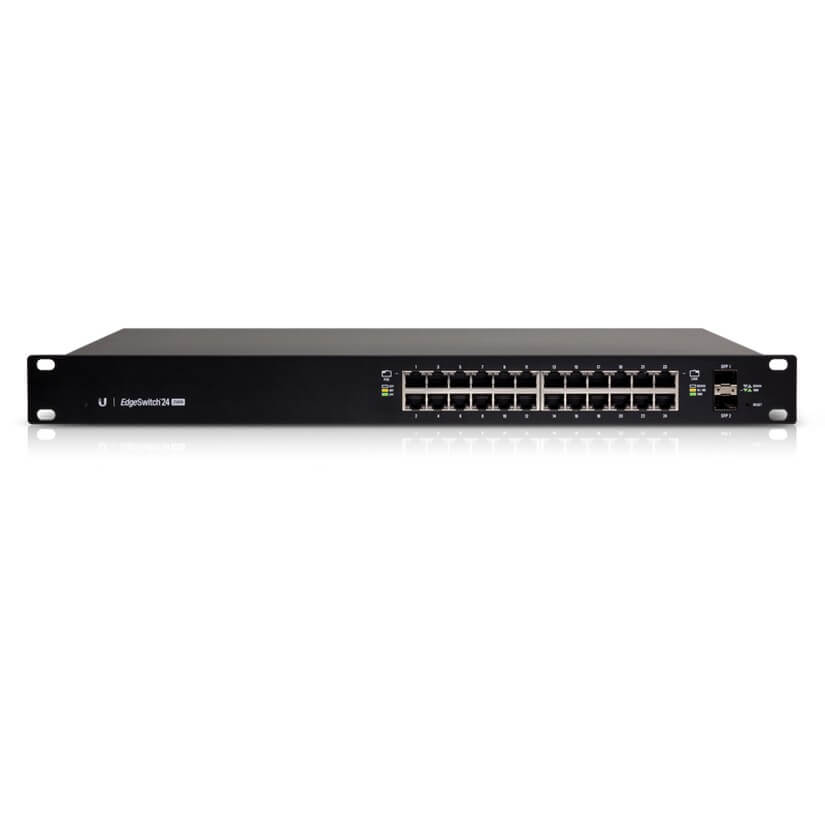

Ubiquiti EdgeSwitch Managed PoE+ Giga Switch 24 Port 250W

Dimensions

485 x 43.7 x 285.4 mm (19.1 x 1.7 x 11.2")

Weight

4.7 kg (10.4 lb)

HARDWARE

Networking interface

(24) 10/100/1000 Mbps RJ45 Ethernet ports
(2) 1 Gbps SFP ports

Management interface

(1) RJ45 serial port, Ethernet In/Out-Band

Total non-blocking throughput

26 Gbps

Switching capacity

52 Gbps

Forwarding rate

38.69 Mpps

Power method

100-240V AC, 50-60 Hz, universal input

Power supply

AC/DC, internal, 250W

Max. power consumption

Includes PoE output: 250W
Excludes PoE output: 30W

LEDs

RJ45 ports: PoE, speed/link/activity
SFP ports: speed/link/activity

Rackmount

Yes, 1U High

ESD/EMP protection

Air/contact: ±24 kV

Shock and vibration

ETSI300-019-1.4 Standard

Ambient operating   temperature

-5 to 40° C (23 to 104° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

POE PER PORT

PoE interface

PoE/PoE+ (Pins 1, 2+; 3, 6-)
24V DC passive PoE (Pins 4, 5+; 7, 8-)

Max. PoE+ wattage per port by PSE

34.2W

Voltage range PoE+ mode

50–57V

Max. passive PoE wattage per port

17W

24V passive PoE voltage range

20-27V
