SPECIFICATIONS:
OVERVIEW |
|
Dimensions |
212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |

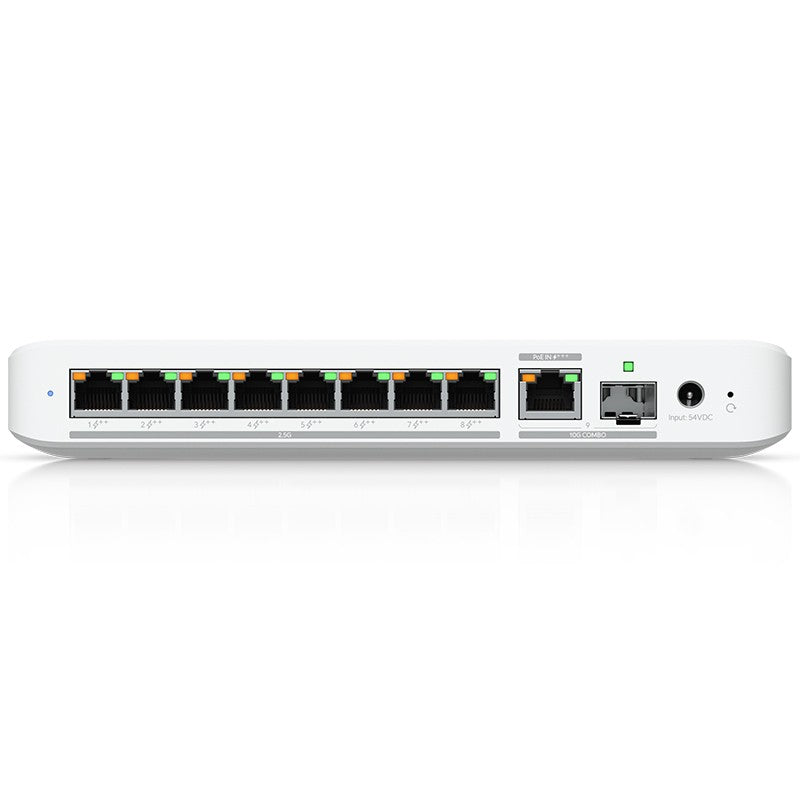

Port Layout |
2.5 GbE RJ45: 8 (All PoE++) (2.5G/1G/100M/10M) 10 GbE RJ45: 1 (PoE+++) (10G/5G/2.5G/1G/100M) 10G SFP+: 1 (10G/1G) |
Max. PoE Output |
Up to PoE++ |
Total PoE Availability |
PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W |
Form Factor |
Compact Desktop, wall, DIN, magnetic |
PERFORMANCE |
|
Switching Capacity |
60 Gbps |
Total Non-Blocking Throughput |
30 Gbps |
Forwarding Rate |
45 Mpps |
Supported VLANs |
256 |
MAC Address Table Size |
4,000 |
LAYER 2 FEATURES |
|
STP & RSTP |
✓ |
Egress Rate Limit |
✓ |
Flow Control |
✓ |
Storm Control |
✓ |
Multicast & Broadcast Rate Limiting |
✓ |
Port Isolation |
✓ |
Port Mirroring |
✓ |
Jumbo Frames |
✓ |
Loop Protection |
✓ |
HARDWARE |
|
PoE Ports |
PoE++: 8 |
Max. PoE Wattage per Port by PSE |
PoE: 15.4W PoE+: 32W PoE++: 64W |
Max. Power Consumption |
14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output) |
Power Method |
(1) AC/DC adapter (Excluded) (1) PoE+++ |
Power Input Method |
DC Input PoE |
Supported Voltage Range |
50—57V DC/PoE |
Management |
Ethernet |
Weight |
567 g (20 oz) |
Enclosure Material |
Polycarbonate |
Mount Material |
Polycarbonate |
Ambient Operating Temperature |
-20 to 45° C (-4 to 113° F) |
Ambient Operating Humidity |
10 to 90% noncondensing |
NDAA Compliant |
✓ |
Certifications |
CE, FCC, IC |
SOFTWARE |
|
Application Requirements |
UniFi Network Version 9.0.114 and later |
