Description
SPECIFICATIONS:
Dimensions |

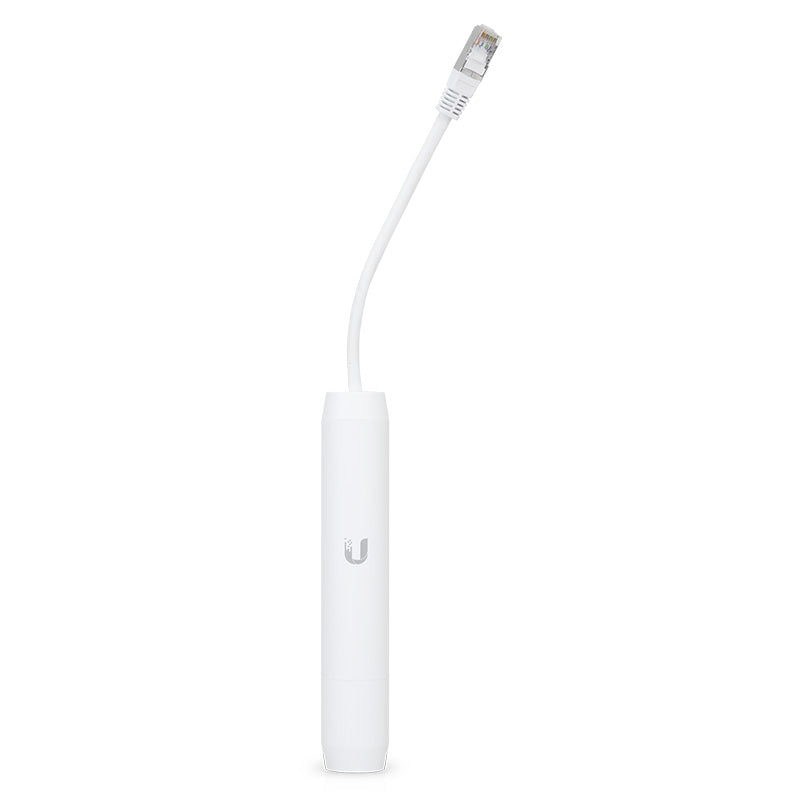

Without RJ45 cable: Ø 30.2 x 166 mm (Ø1.2 x 6.5") With RJ45 cable: Ø30.2 x 366.6 mm (Ø 1.2 x 14.4") |
Weight |
90 g (3.2 oz) |
Networking interface |
(1) GbE RJ45 port (PoE in) (1) GbE RJ45 port (PoE out) |
Power method |
24V passive PoE (Pairs 4, 5+; 7, 8 return) |
Power input |
PoE, 48V DC, 0.5A |
Max. power output |
24V DC, 0.5A |
Ethernet ESD/surge protection |
±15kV |
Ambient operating temperature |
-30 to 70° C (-22 to 158° F) |
