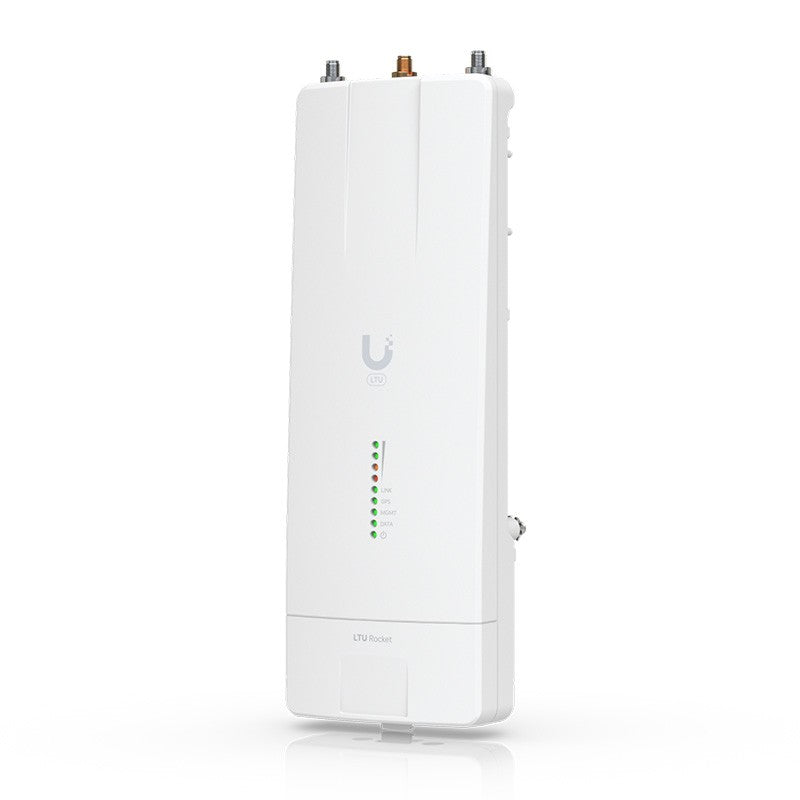

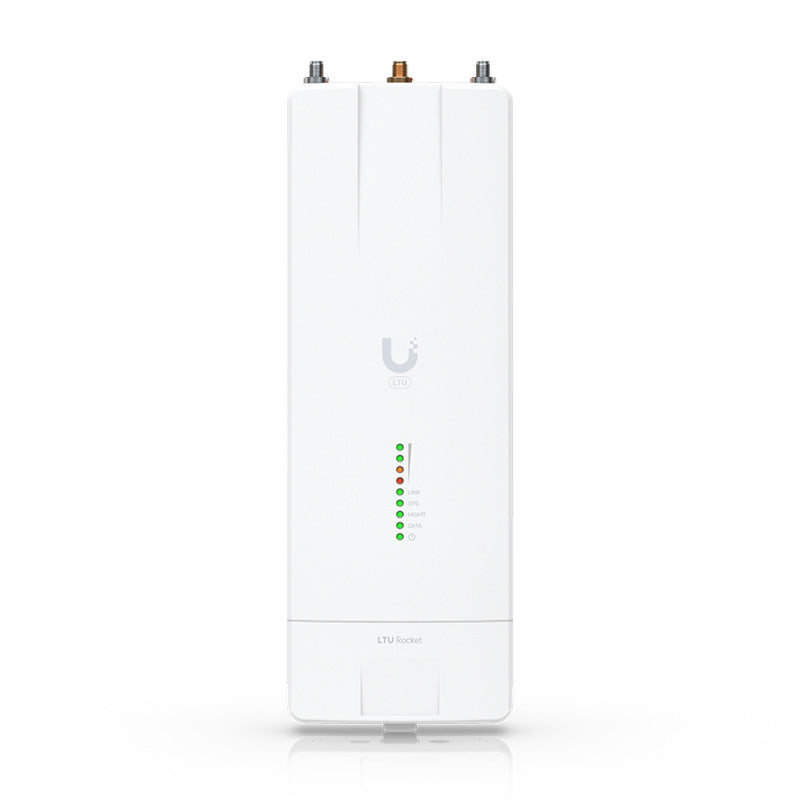

Ubiquiti LTU Rocket Point-to-MultiPoint 5GHz LTU BaseStation Radio

Dimensions

224 x 82 x 48mm (8.82 x 3.23 x 1.89")

Weight

468 g (1.03 lb)

Enclosure materials

Diecast aluminum, polycarbonate

Mount materials

Metal, polycarbonate

Mounting

Integrated pole mount (Kit included)
GPS pole mount (Kit included)
Rocket mount compatible

Weatherproofing

IP67

HARDWARE

Networking interface

(2) GbE RJ45 ports

Power method

Dual passive PoE

Power supply

24V, 1A PoE Gigabit adapter (Included)

Supported voltage range

18—54V DC

Max. power consumption

25W

RF connections

(2) RP-SMA weatherproof   (CH0, CH1)
(1) SMA weatherproof (GPS)

GPS

Yes

GPS antenna

External magnetic base

Button

Factory reset

Operating temperature

-40° to 55° C (-40° to 131° F)

Certifications

FCC

SOFTWARE

Mode

PtMP BaseStation radio

Services

SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog

Utilities

airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation

Auto distance adjustment

Yes

Auto power adjustment

Yes

Security

Yes

Statical reporting

Yes

Management interface

Bluetooth management for easy setup over UISP App
WEB UI

Minimum software requirements

Any modern   web browser
iOS™ or Android™ based smartphone

SYSTEM

Maximum throughput

900+ Mbps*
*FW version 2.3.0 and later.

Packets per second

2+ million

Supported clients count

100+

Maximum range

100+ km*
* Throughput and range values may vary depending on the environmental conditions.

Encryption

WPA2-PSK (AES)

Uplink/Downlink ratio

25/75, 33/67, 50/50

RF

Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

Worldwide



5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

4800 - 6200 MHz
*Depends on regulatory region.

Max. conducted TX power

29 dBm

Channel bandwidth

10/20/30/40/50/60/80/100   MHz* selectable
Programmable uplink and downlink duty cycles
_{*FW version 2.3.0 and later.}

Management radio

2400 - 2483.5   MHz
