Description
SPECIFICATIONS:
OVERVIEW |
|
Dimensions |
442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
|

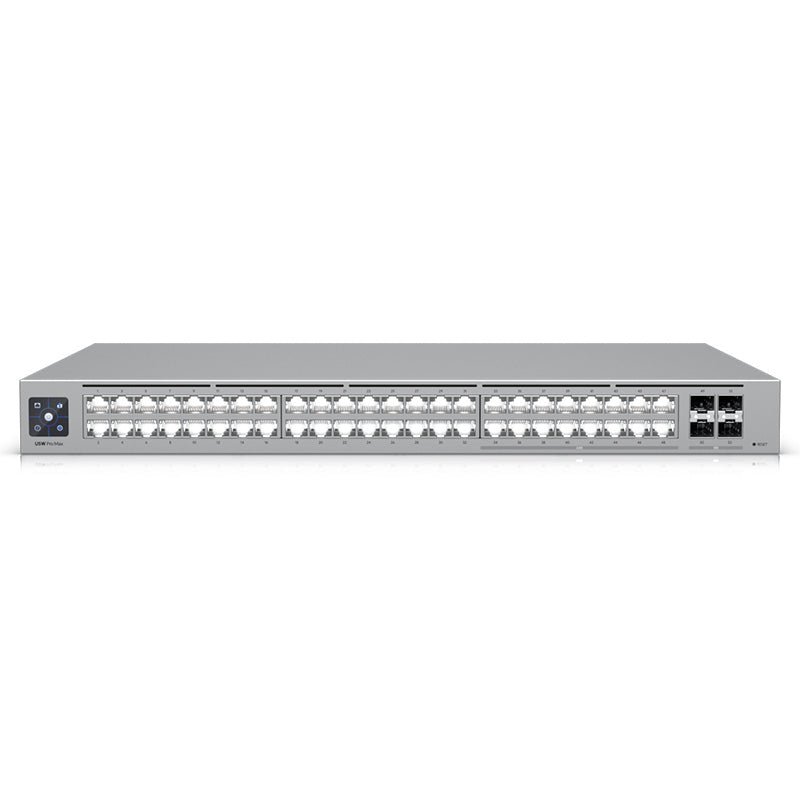

Port Layout 1 GbE RJ45 2.5 GbE RJ45 10G SFP+ |
32 16 4 |
Redundancy |
DC Power Backup |
Layer 3 |
✓ |
Form Factor |
Rack mount (1U) |
Etherlighting™ |
✓ |
PERFORMANCE |
|
Switching Capacity |
224 Gbps |
Total Non-Blocking Throughput |
112 Gbps |
Forwarding Rate |
167 Mpps |
Supported VLANs |
1,000 |
MAC Address Table Size |
32,000 |
|
L3 Table Size ARP Entries IPv4 Routes |
12,000 12,000 |
Packet Buffer Size |
2 MB |
LAYER 3 FEATURES |
|
DHCP Server (Local Networks) |
✓ |
DHCP Relay |
✓ |
Inter-VLAN Routing (Local Networks) |
✓ |
Static Routing (Local Networks) |
✓ |
LAYER 2 FEATURES |
|
LACP Port Aggregation |
✓ |
STP & RSTP |
✓ |
QoS (DSCP) |
✓ |
Pro AV Profiles |
✓ |
Advanced IGMP Configuration |
✓ |
IGMP Snooping |
✓ |
802.1X Control |
✓ |
MAC-Based ACLs & Device Isolation |
✓ |
DHCP Snooping & Guarding |
✓ |
Egress Rate Limit |
✓ |
Flow Control |
✓ |
Storm Control |
✓ |
Multicast & Broadcast Rate Limiting |
✓ |
MAC Address Blocking |
✓ |
IP-Based ACLs & Network Isolation |
✓ |
MAC-Based Port Restriction |
✓ |
Port Isolation |
✓ |
Port Mirroring |
✓ |
Jumbo Frames |
✓ |
LLDP-MED |
✓ |
Voice VLAN |
✓ |
Loop Protection |
✓ |
HARDWARE |
|
Max. Power Consumption |
100W |
Power Method |
(1) Universal input, 100—240V AC, 50/60 Hz (1) USP RPS DC input |
Power Input Method |
AC input |
Power Supply |
AC/DC, internal, 100W |
Supported Voltage Range |
100—240V AC |
Management |
Ethernet AR |
Heat Dissipation (Excluding PoE Output) |
341.2 BTU/hr |
Weight |
Without mounting brackets: 4.8 kg (10.6 lb) With mounting brackets: 4.9 kg (10.8 lb) |
Enclosure Material |
SGCC steel |
LCM Display |
1.3" touchscreen |
Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
Ambient Operating Humidity |
10 to 90% noncondensing |
Certifications |
CE, FCC, IC |
|
Etherlighting™ Ethernet SFP+ |
✓ ✓ |
