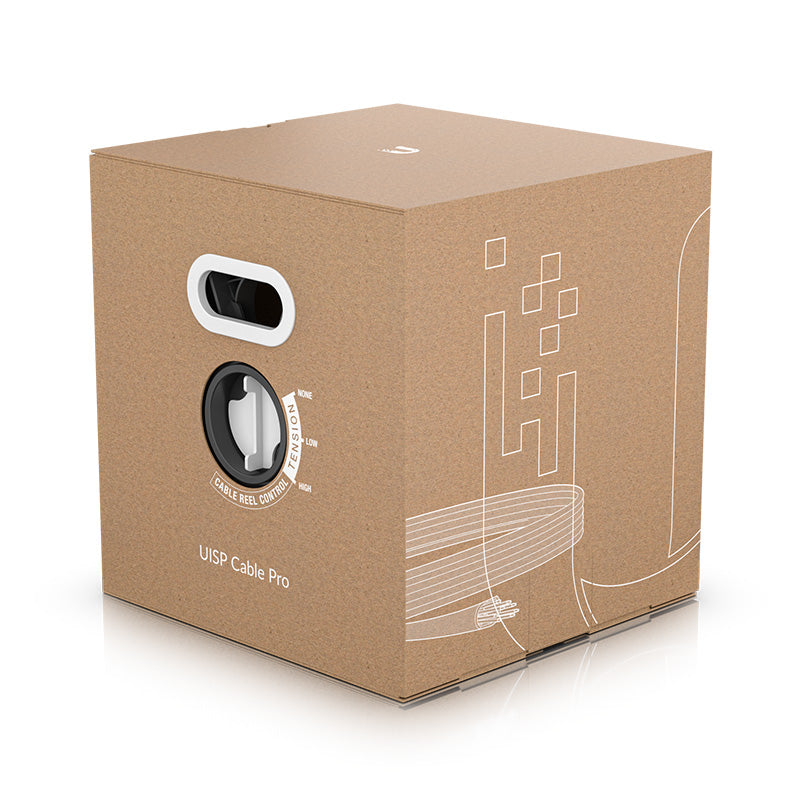

Ubiquiti UISP Cable Pro Carrier-Class Shielded Outdoor Cable (UISP-Cable-Pro)
Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage. The UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.
Category 5e cable
Insulated, weatherproof cable jacket
Internal foil shielding and drain wire for increased ESD damage protection
Cable length 305 m
24 AWG solid copper conductor pairings
SPECIFICATIONS:
Box Dimensions |
330 x 330 x 340 mm (13 x 13 x 13.4") |
Box Weight |
12 kg (26.5 lb) |
Cable Length |
305 m (1000 ft) |
Cable Color |
Black |
Cable Type |
CAT5e, Shielded |
Ethernet Support |
Up to 1 Gbps |
Conductor Wire Gauge |
24 AWG |
Conductor |
Solid Bare Copper |
Conductor Diameter |
0.500 ± 0.005 mm |
Insulation Type |
Solid Polyethylene |
Insulation Thickness |
Avg. 0.26 mm |
Insulation Diameter |
1.04 ± 0.03 mm |
Separation (Polyester Wrapping) |
Thick: 0.025 mm, Extent: 20 mm |
Anti-Crosstalk Divider |
None |
Cable Shield (Aluminum Foil) |
Thick: 0.060 mm, Extent: 18 mm |
ESD Drain Wire |
0.4 CCS |
Rip Cord |
Yes |
Jacket Material |
Polyethylene |
Jacket Thickness |
Avg. 0.50 mm |
Jacket Outer Diameter |
6.0 ± 0.30 mm |
Jacket Color |
Black |
Storage Temperature |
-30 to 75° C (-22 to 167° F) |
Installation Temperature |
-20 to 60° C (-4 to 140° F) |
Operation Temperature |
-40 to 80° C (-40 to 176° F) |
Standards |
ANSI/TIA-568-C.2 (2009) |
