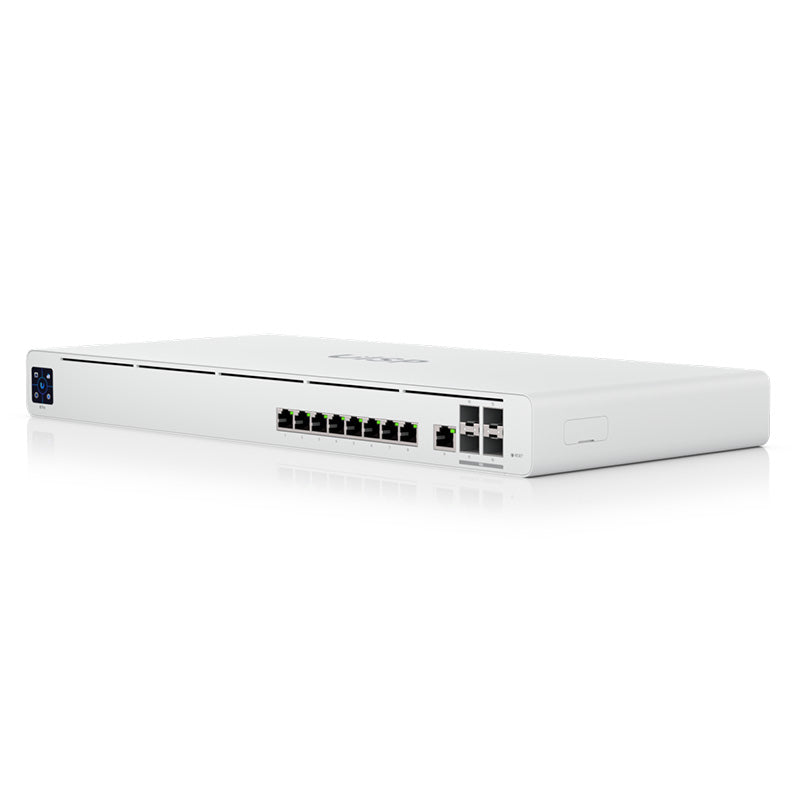

Ubiquiti UISP Router Pro 9 Port Gigabit Ethernet RJ45 Router with 4 Port 10G SFP+ designed for ISP application

Dimensions

442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")

Weight

3.3 kg (7.2 lb)

Enclosure materials

SGCC steel, polycarbonate/ABS

HARDWARE

Processor

Quad-core ARM® Cortex®-A57 at 1.7 GHz

Memory

4 GB DDR4

Onboard

16 GB eMMC

Networking interface

(8) GbE RJ45 LAN ports
(1) GbE RJ45 WAN port
(4) 1/10G SFP+ ports

Management interface

Ethernet
Bluetooth

Power method

(1) Universal AC input, 100—240V AC, 1.5A Max, 50/60 Hz
(1) Power TransPort DC input 27V DC, 2.2A

Power supply

AC/DC, Internal, 60W

Supported voltage range

100—240V AC

Max. power consumption

50W

ESD/EMP protection

Air: ± 15kV, contact: ± 8kV

LCM display

(1) 1.3" touchscreen

Operating temperature

-10 to 50° C (14 to 122° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

LEDS

RJ45 data ports

Speed/link/activity

SFP+ data ports

Speed/link/activity

SOFTWARE

Management application

UISP: Version 1.4.5 and later
