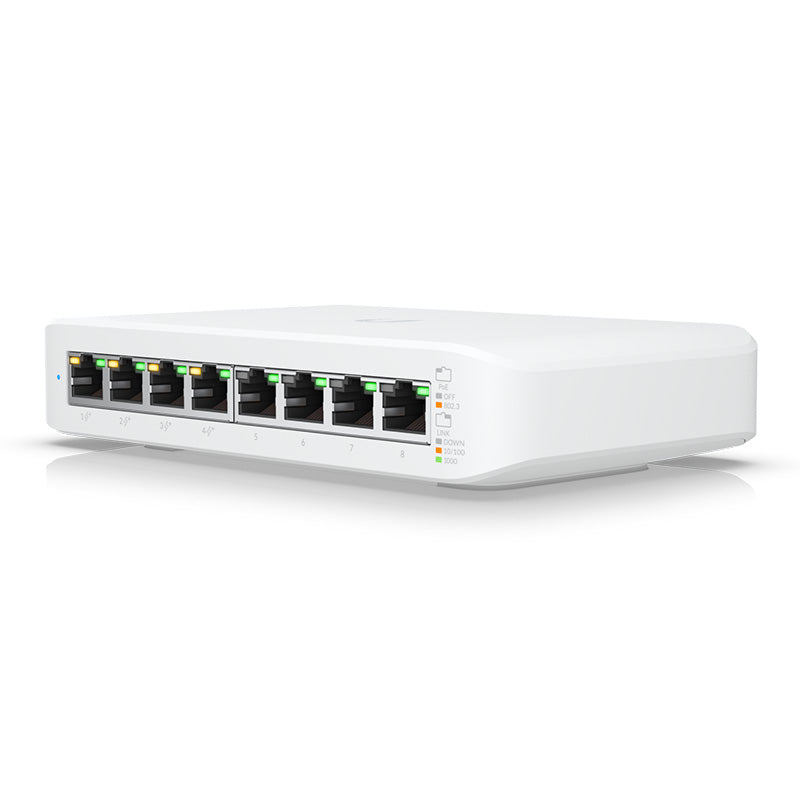

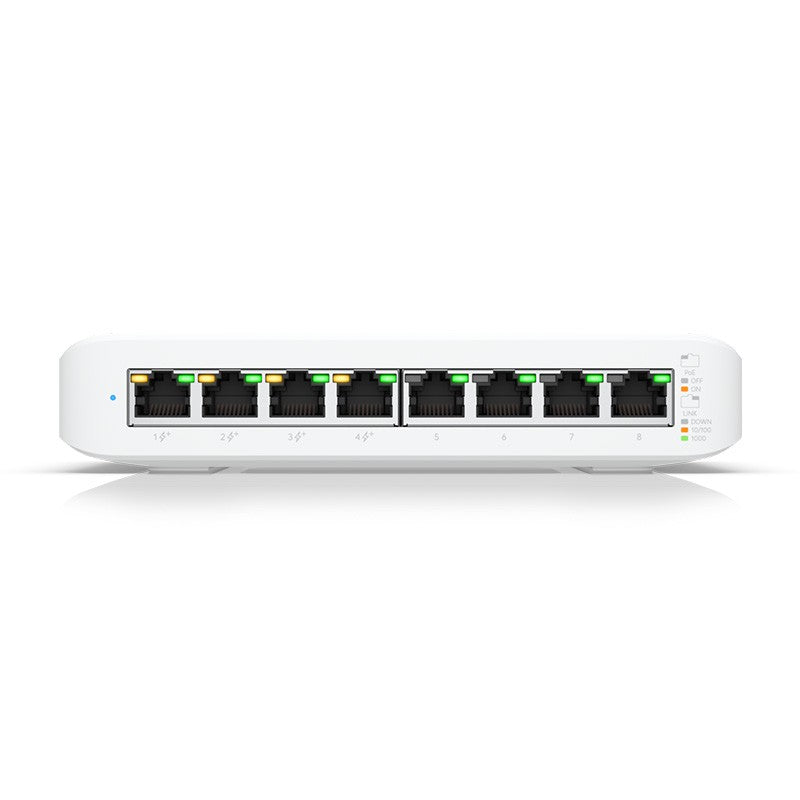

Ubiquiti UniFi Lite 8 Port Managed PoE/PoE+ Gigabit Switch

Dimensions

99.6 x 163.7 x 31.7 mm (4 x 6.4 x 1.3")

Weight

295 g (10.4 oz)

Enclosure material

Polycarbonate

HARDWARE

Management interface

Ethernet In-Band

Networking interface

(8) GbE RJ45 ports

PoE interface

(4) PoE/PoE+ (Pins 1, 2+; 3, 6-)

Total non-blocking throughput

8 Gbps

Switching capacity

16 Gbps

Forwarding rate

11.904 Mpps

Power method

54V DC, 1.1A power adapter

Power supply

54V, external, 60W

Supported voltage range

50—57V DC

Max. power consumption

8W (Excluding PoE output)

Total available PoE

52W*
*With an external 60W power adapter.

Max. PoE wattage per port by PSE

PoE+: 30W

Button

Factory reset

Ambient operating   temperature

-15 to 40° C (5 to 104° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

SWITCHING FEATURES

Layer 2 features

IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs

LEDS

System

Status

Ethernet

PoE
Speed/link/activity

PoE

Link/activity

APPLICATION REQUIREMENTS

UniFi Network

Version 7.2.94 and later

OTHERS

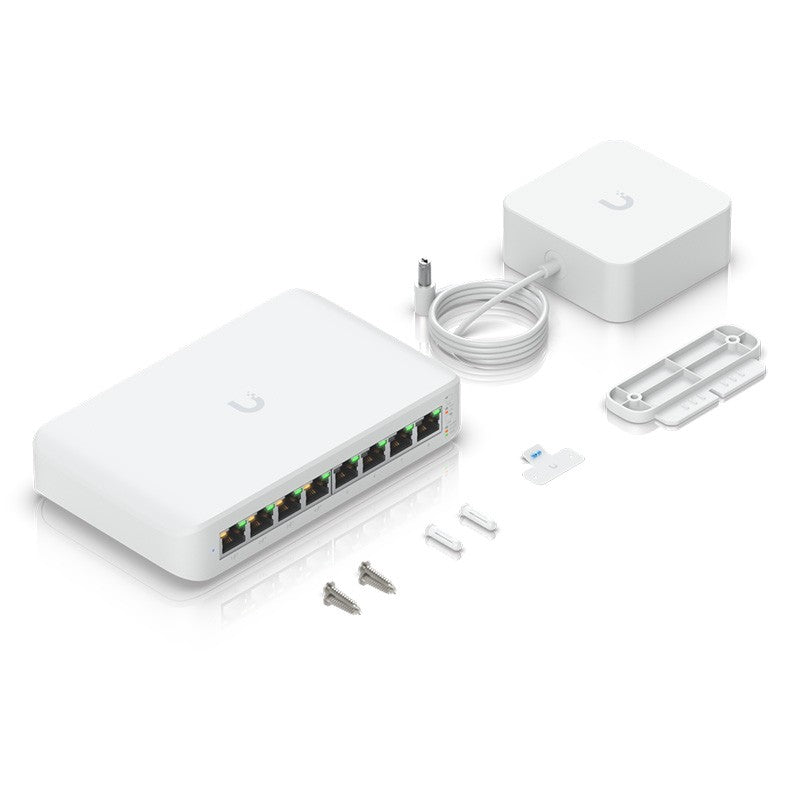

Package Contents

AU plug is included
