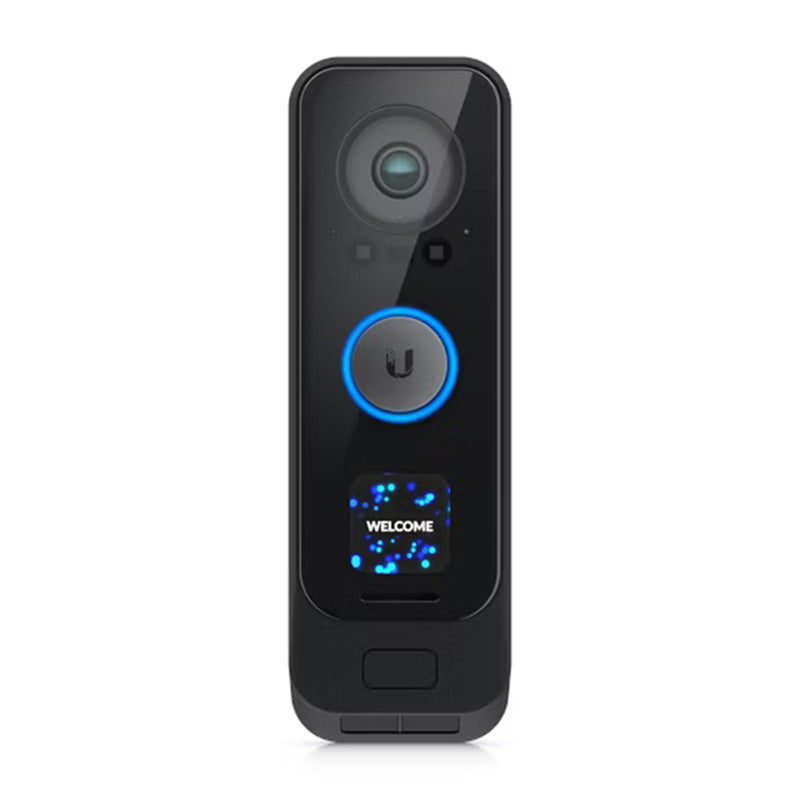

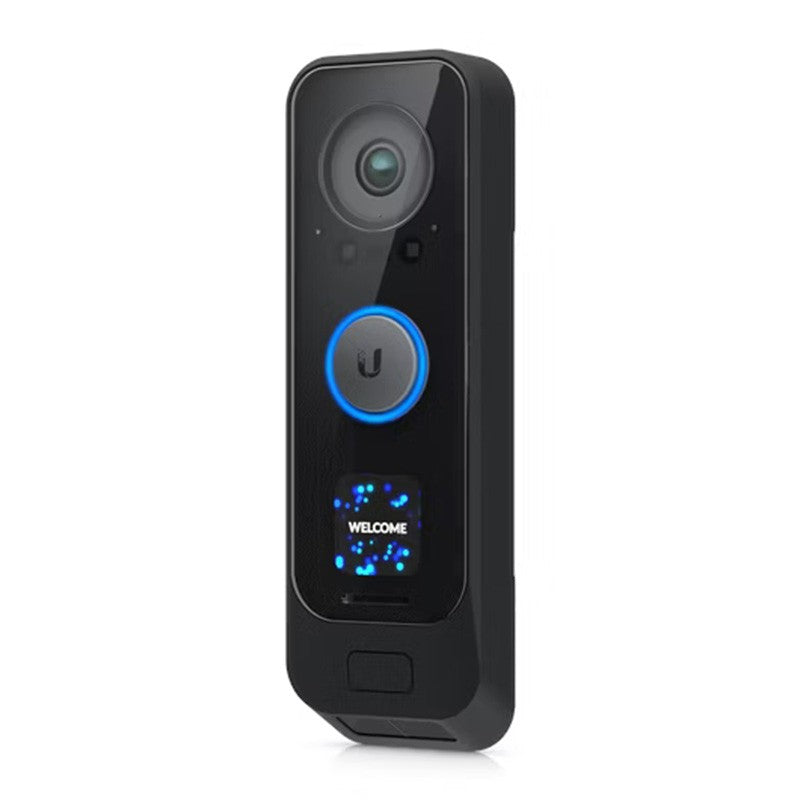

Ubiquiti UniFi Protect G4 Doorbell Pro

Dimensions

160.6 x 51.7 x 28.7 mm (6.3 x 2 x 1.1")

Weight

Without mount: 253 g (8.92 oz)
With flat wall mount: 286 g (10.08 oz)
With 20° wedge mount: 325 g (11.46 oz)

Enclosure materials

Polycarbonate, aluminum alloy

Mount materials

Flat wall mount: aluminum alloy
20° wedge mount: polycarbonate

Weatherproofing

IPX4

OPTICS

Sensor

Main camera: 5MP CMOS sensor
Package camera: 8MP CMOS sensor

Lens

Fixed focal length

View angle

Main camera: H: 138°, V: 114°, D: 155°
Package camera: H: 97.5°, V: 79.4°, D: 118.2°

Night mode

Built-in IR LED illumination and IR cut   filter

VIDEO

Video compression

H.264

Resolution

1600 x 1200 (4:3)

Max. frame rate

30 FPS

SYSTEM

Processor

Quad-core Arm® Cortex®-A53 based chip

Networking interface

802.11a/b/g/n/ac WiFi
Bluetooth 5.0
GbE support (with UACC-Adapter-DBPOE)

Max. power consumption

10W

Power requirements

16—24V AC, 1.25A max., 50/60 Hz
USB-C power cable, 5V DC, 2A

Supported voltage range

37—57V DC

LED

Link/activity

Button

(1) Ring button
(1) Factory reset

Mounting

Flat wall, 20° wedge (Included)

Operating temperature

-10 to 40º C (14 to 104º F)

Operating humidity

10 to 90% noncondensing

Certifications

FCC, IC, CE

AUDIO

Microphone

Yes (Can be disabled in software)

Speaker

Yes

SOFTWARE

Web application

UniFi Protect: Version 1.21.0 and later

Mobile app

UniFi Protect iOS™: Version 1.5.8 and   later
UniFi Protect Android™: Version 1.4.8 and later
