Description
SPECIFICATIONS:
Overview |
|
Dimensions |
130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
IR Night Vision |
15 m (50 ft) |
Zoom Mode |
3x Optical |
License Plate Recognition |
✓ |
Smart Detections (People, Vehicles, Animals) |
✓ |
Resolution |
4K |
Field of View |
Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
Audio |
Microphone |
Weatherproofing |
IP66 |
Tamper Resistance |
IK04 |

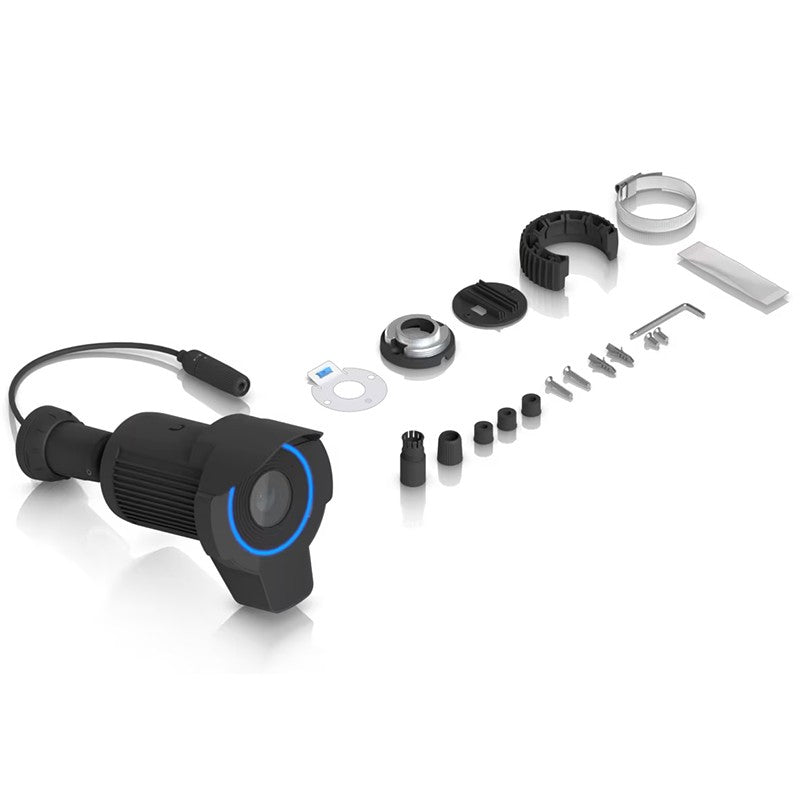

Mounting |
Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
Performance |
|
Networking Interface |
GbE RJ45 port |
Video |
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay Max. Frame Rate: 30 FPS Resolution: 8MP 3840 x 2160 (16:9) |
Optics |
Sensor: 1/1.8" 8MP Lens: F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 IR Capture Distance: 15 m (50 ft) LPR Night Mode : LPR optimization filter |
Hardware |
|
Max. Power Consumption |
25.5W |
Supported Voltage Range |
42.5–57V DC |
Power Method |
PoE+ |
Processor |
Quad-core Arm® Cortex®-A53 based chip |
Pole Mount Diameter |
1.5–2" (38–50 mm) |
Weight |
1.5 kg (3.3 lb) |
Enclosure Material |
Aluminum alloy, polycarbonate |
Mount Material |
Aluminum Alloy |
Expansion Slot |
Micro SD memory card |
Button |
(1) Factory-reset |

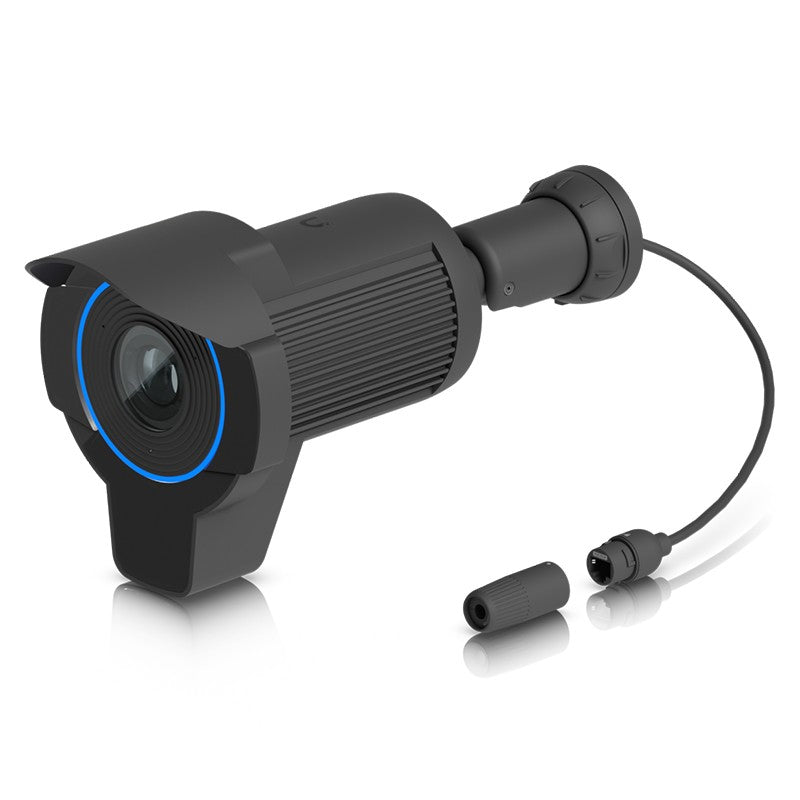

Cable |
Cable Connector Type: RJ45 Cable Diameter: 4.5 mm (0.2") Cable Length: 30 cm (1 ft) Jacket Material: Thermoplastic elastomer Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8") Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber |
Ambient Operating Temperature |
-20 to 50° C (-4 to 122° F) |
Ambient Operating Humidity |
10 to 90% noncondensing |
NDAA Compliant |
✓ |
Certifications |
CE, FCC, IC |
