Description
SPECIFICATIONS:
Dimensions |
107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83") |
Weight |
150 g (5.29 oz) |
Interfaces |

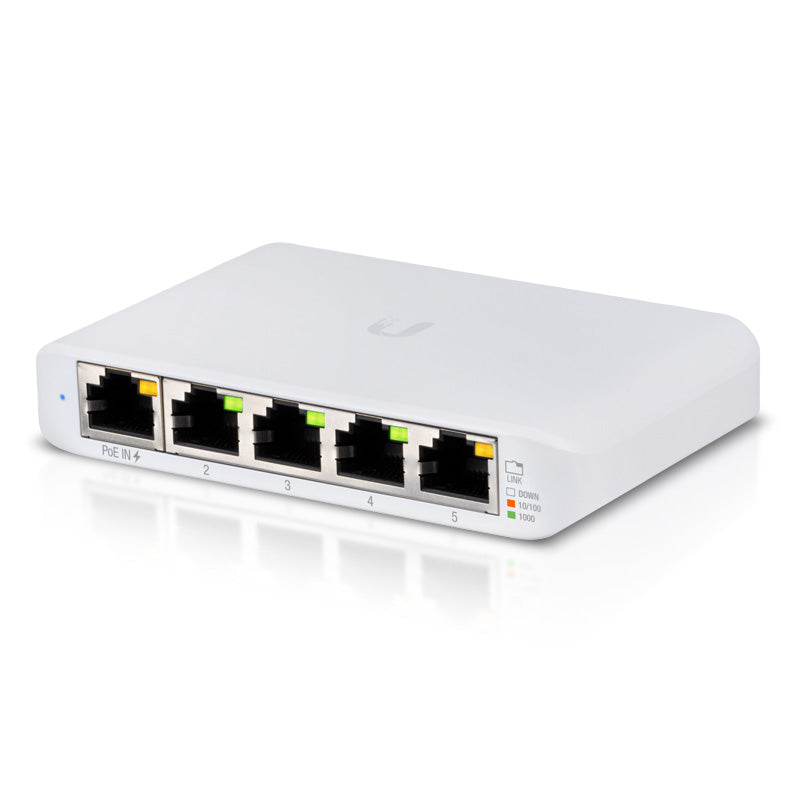

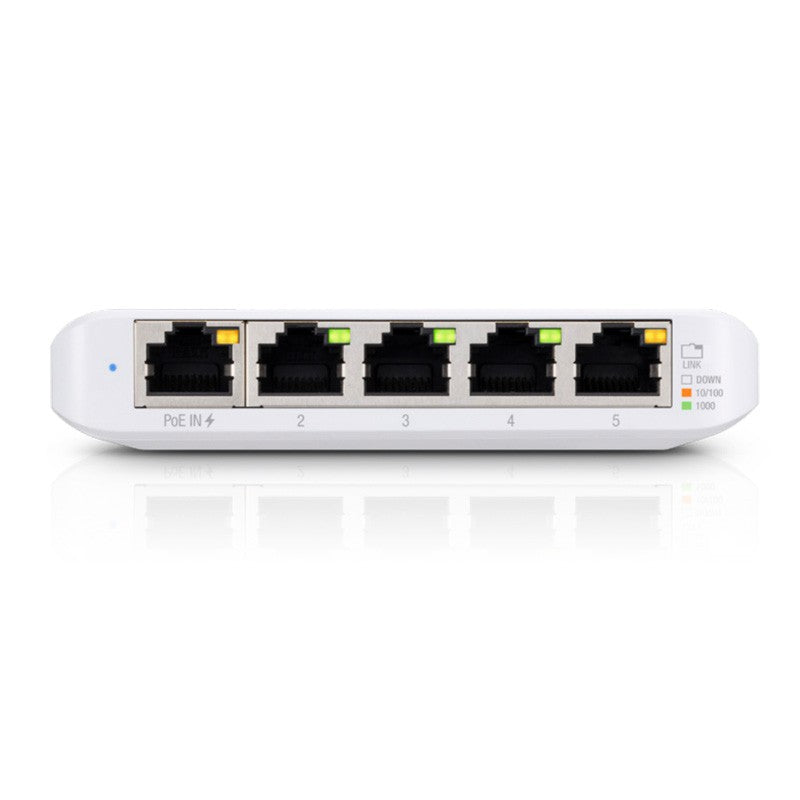

Networking: (5) 10/100/1000 RJ45 Ports PoE In: 802.3af/at PoE (Pins 1, 2+; 3, 6-) Management: Ethernet In-Band |
Total Non-Blocking Throughput |
5 Gbps |
Switching Capacity |
10 Gbps |
Forwarding Rate |
7.44 Mpps |
Power Method |
USB Type C, 5V 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A) |
Power Supply |
5V, 1A Power Adapter (Included) *Only single-unit packages include the 5V, 1A USB-C power adapter. |
Voltage Range |
USB Type C: 4.7 - 5.3V 802.3af/at PoE: 44 - 57VDC |
Max Power Consumption |
2.5W |
LEDs |
System: Status RJ45 Data Ports: Speed/Link/Activity |
ESD/EMP Protection |
Air: ±16 kV, Contact: ±12 kV |
Shock and Vibration |
ETSI300-019-1.4 Standard |
Operating Temperature |
-5 to 45° C (23 to 113° F) |
Operating Humidity |
10 - 90% Noncondensing |
Certifications |
CE, FCC, IC |
