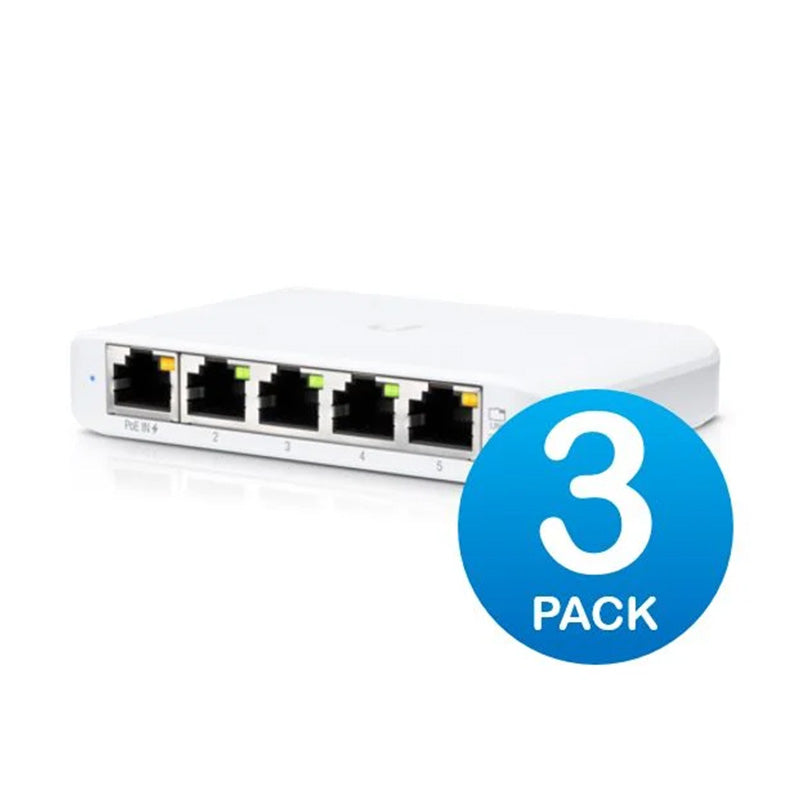

Ubiquiti USW Flex Mini 5 Port Managed UniFi Switch - 3 Pack

Dimensions

107 x 70 x 21 mm (4.2 x 2.8 x 0.8")

Weight

150 g (5.3 oz)

Enclosure material

Polycarbonate

HARDWARE

Management interface

Ethernet In-Band

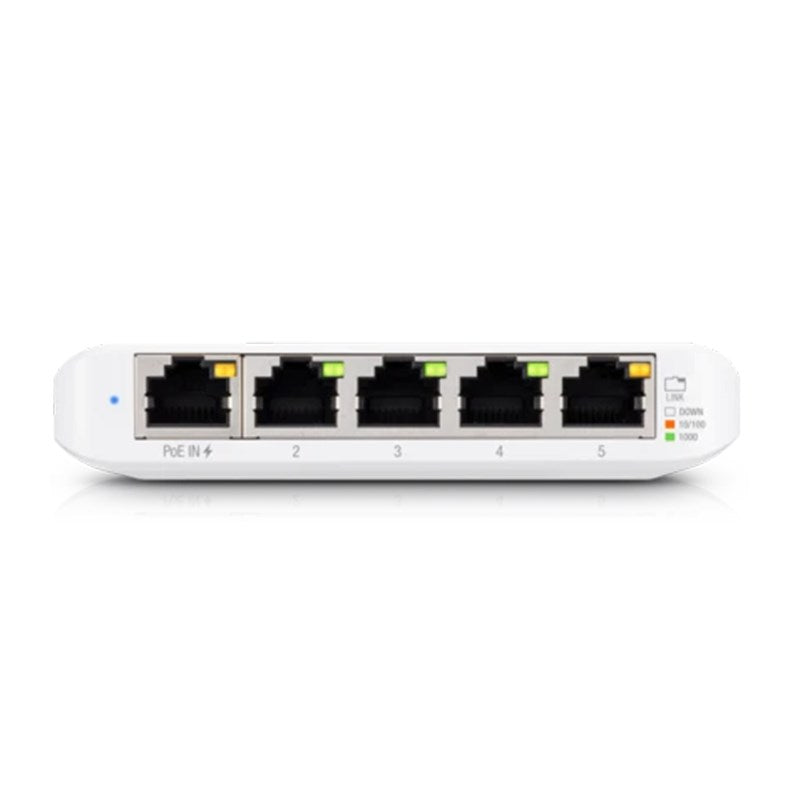

Networking interface

(5) GbE RJ45 ports

Total non-blocking throughput

5 Gbps

Switching capacity

10 Gbps

Forwarding rate

7.44 Mpps

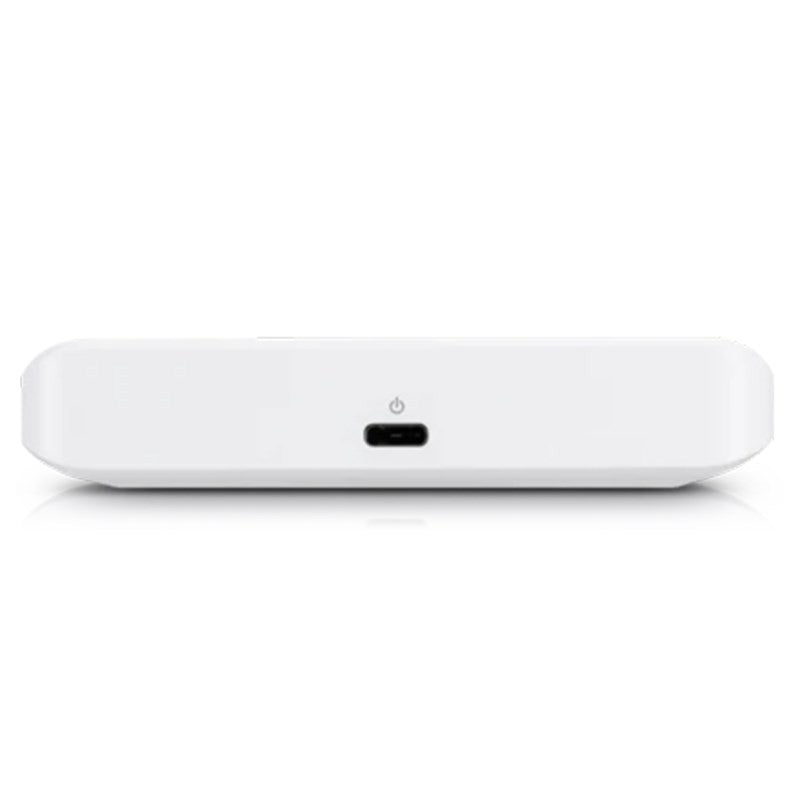

Power method

(1) USB Type C, 5V
(1) PoE/PoE+, 44—57V DC, 0.05—0.04A

Power supply

5V, 1A power adapter*

*Only single-unit packages include the 5V, 1A USB-C power adapter.

Supported voltage range

USB Type C: 4.7—5.3V DC
PoE/PoE+: 44—57V DC

Max. power consumption

2.5W

ESD/EMP protection

Air: ± 16kV, contact: ± 12kV

Button

Factory reset

Ambient operating temperature

-5 to 45° C (23 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

SWITCHING FEATURES

Layer 2 features

Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

LEDs

System

Status

Ethernet

Speed/link/activity

APPLICATION REQUIREMENTS

UniFi Network

Version 5.12.5 and later
