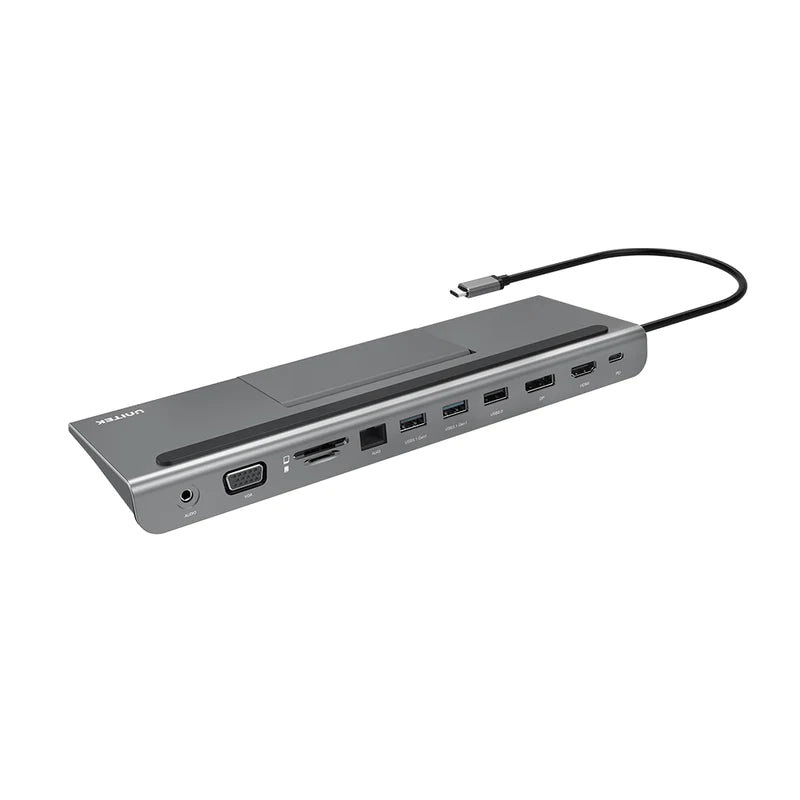

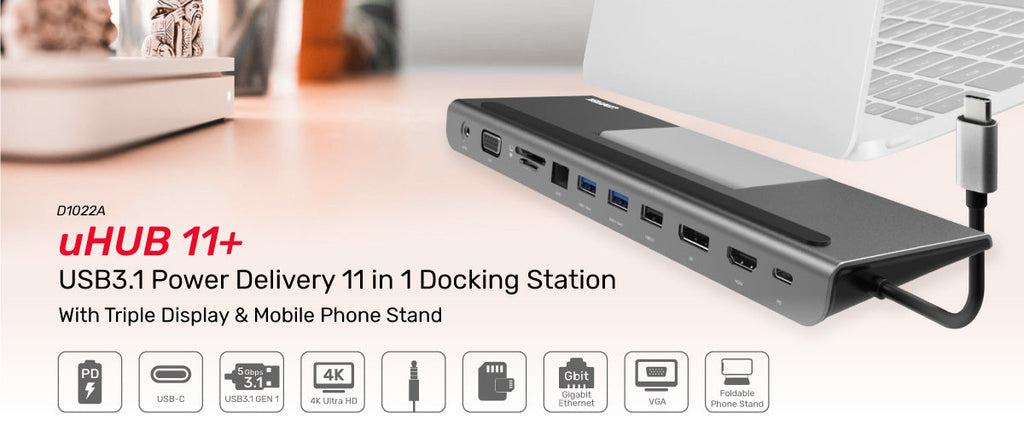

This triple display docking station turns your USB-C laptops into a full workstation with a VGA output and dual HDMI outputs. MST resolution supports 1080p. With 100W Power Delivery, three USB 3.0 ports, and a USB-C 100W charging port, this docking station is perfect for your USB-C laptops.
Product Features
- Note: MST Function works with Windows OS only.
- 2 x USB-A 3.0 port, transfer rate up to 5 Gbps; with fast charging according to spec. BC 1.2 – for connection and fast charging of a USB device (5V/1.5A)
- 1 x SD card reader with a maximum transfer rate of 100 Mbps
- 1 x microSD card reader with a maximum transfer rate of 100 Mbps
- 1 x Audio out 3.5 mm

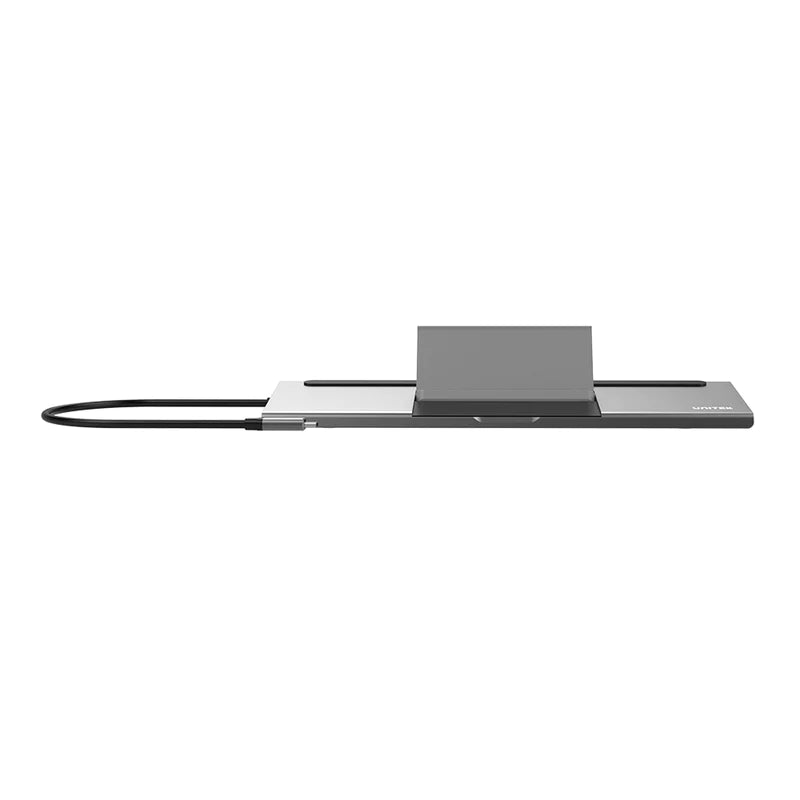

- 1 x Foldable mobile phone stand
- 1 x USB-A 2.0 port, transfer rate up to 480 Mbps

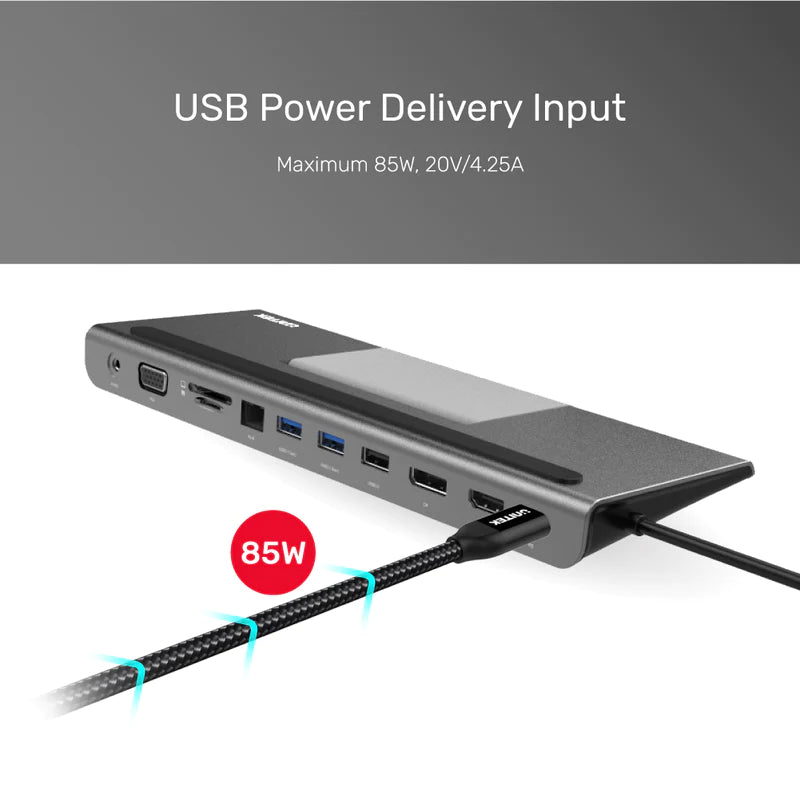

- 1 x USB-C Power Delivery port with profile 5 (up to 20V/5A, max. 100W)
- 1 x Ethernet GLAN RJ-45 port, 10/100/1000 Mbps
- Graphic interface: 1 x HDMI max. resolution 4K/30Hz, 1 x Display Port max resolution 4K/30Hz, 1 x VGA max. resolution 1080p/60Hz
- Product Dimension: 260mm x 90mm x 22mm
Specification
| Dimension |
260mm x 90mm x 22mm |
| Material |
Aluminium-Alloy Housing |
| Color |
Space Gray |
| Upstream |
USB-C Full-Featured |
| Downstream |

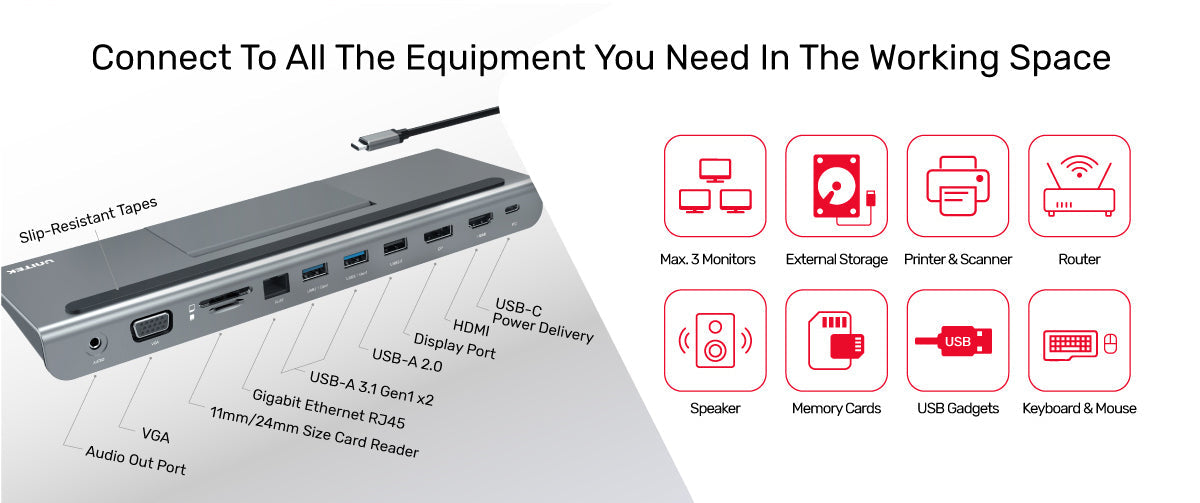

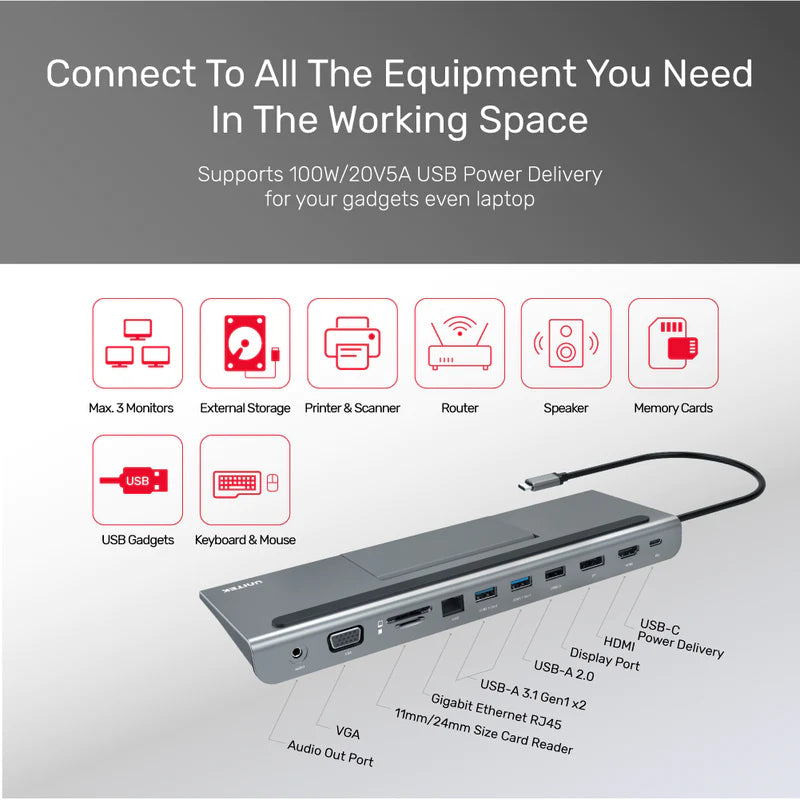

2 x USB3.1 Gen1 Type-A,1 x USB2.0 Type-A,1 x USB-C for PD Input,1 x HDMI,1 x Display Port,1 x VGA,1 x Audio 3.5mm,1 x Gigabit Ethernet RJ45,1 x SD Card Slot,1 x Micro SD Card Slot |
