Description

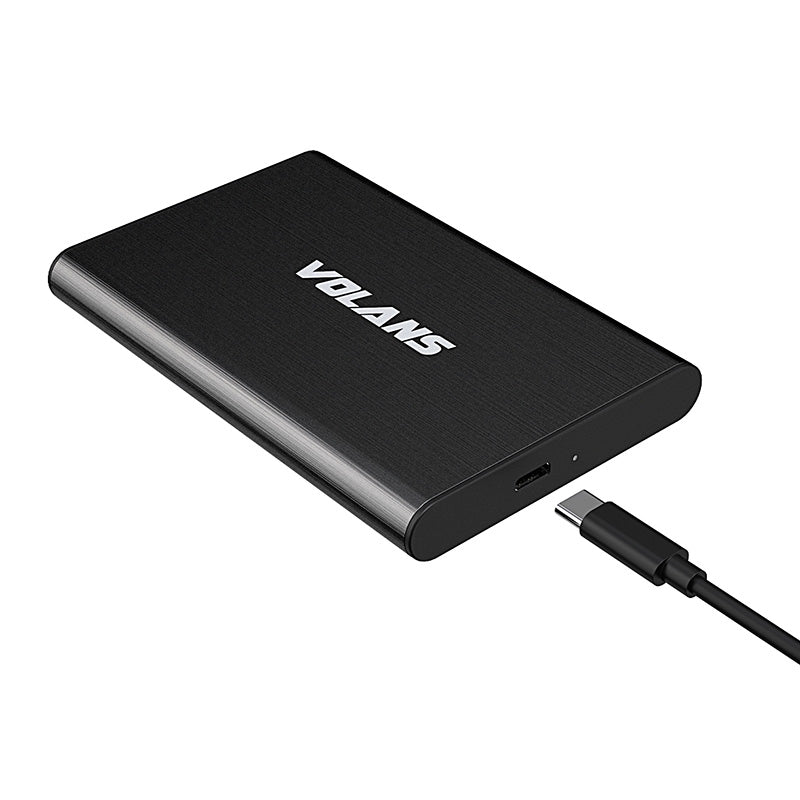

Volans 2.5in Aluminium USB Type C HDD Enclosure
Supports 2.5 inch SATA I/II/III HDD (9.5mm) up to 6TB
SuperSpeed USB 3.1 Interface, backwards compatible with USB 3.0/2.0/1.1
Easy installation allow to mount Hard Drive in seconds
Plug and play and hot-swappable, no additional driver needed
LED light indicates power and activity status
Dimensions: 120 (L) x 77 (W) x 13(H)
Compatible with Windows 2000 / XP / VISTA/7/8/10, Mac OS 9.X and Linux2.4.2 and above
SPECIFICATIONS:
HARDWARE |
|
Chipset ID |
JMS576 |
Compatible Drive Types |
SATA |
Drive Installation |
Tool-less |
Drive Size |
2.5in |
Fan(s) |
No |
Number of Drives |
1 |
PERFORMANCE |
|
Max Drive Capacity |
Currently tested with up to 6TB hard drives |
RAID |
No |
Type and Rate |
6Gbps (Max) |
UASP Support |
Yes |
CONNECTOR(S) |
|
Drive Connectors |
1 – SATA Data & Power Combo (7+15 pin) Receptacle |
Host Connectors |
1 – USB-C Female |
SOFTWARE |
|
OS Compatibility |
Windows/Mac/Linux |
INDICATORS |
|
LED Indicators |
1 – Power & Activity |
POWER |
|
Power Source |
Type-C Port Power Supply |
ENVIRONMENTAL |
|
Humidity |
10%RH ~ 95%RH |
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Temperature |
-10°C to 65°C (14°F to 149°F) |
PHYSICAL CHARACTERISTICS |
|
Color |
Black |
Enclosure Type |
Aluminium |
Max Drive Height |
9.5 mm |
WHAT’S IN THE BOX |
|
Included in Package |
1 – USB-C to 2.5″ SSD/HDD Enclosure 1 – USB-C (M) to USB-A (M) Cable 1 – USB-A (F) to USB-C (M) adapter 1 – Install Guide |
