Description

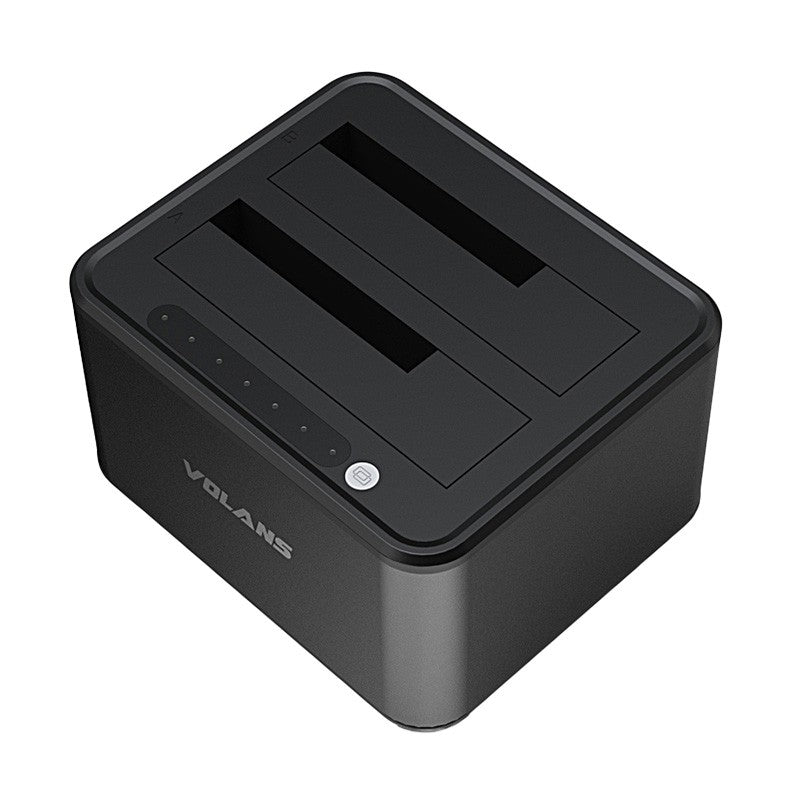

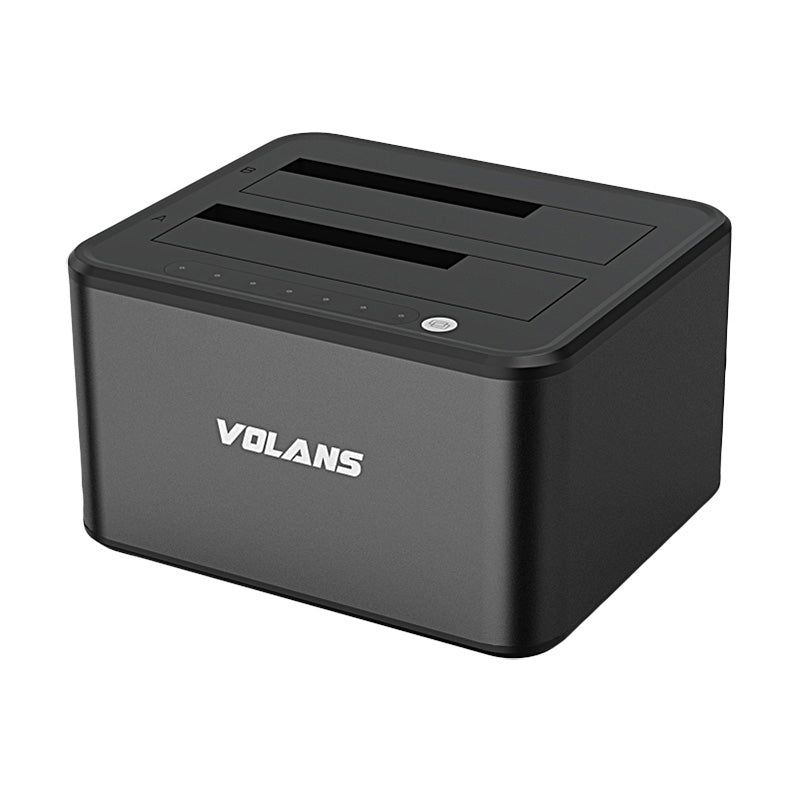

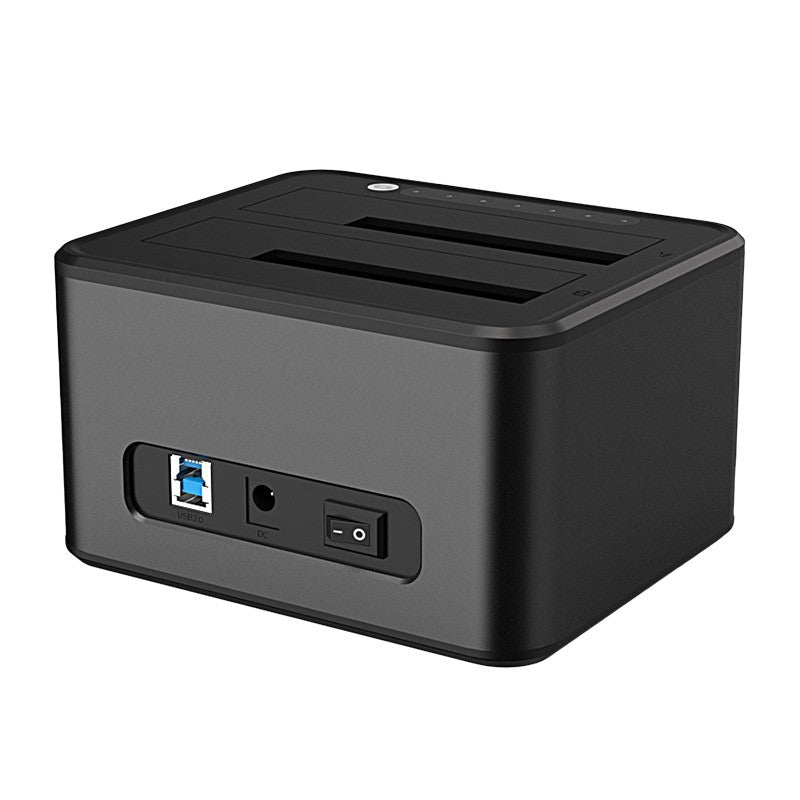

Volans VL-DS30S Aluminium Dual Bay USB 3.0 Docking Station
Designed for 2.5” (4TB total) or 3.5” (32TB total) SATA HDD/SSD
USB 3.0 SuperSpeed Interface, transfer rates up to 5Gbps
Backwards-Compatible with USB 2.0, transfer rates up to 480Mbps
Solid aluminium casing with ABS top panel, elegant and stylish
LED light indicates Power and Activity status
Hot-swappable, plug and play, no drivers needed
Support offline clone, easy installation, computer-independent duplicating/cloning without computer support, high efficiency
Reliable and high watts DC power supply, so that a stable energy supply is guaranteed
Compatible Operating Systems: Windows XP and above (32/64-bit), Mac OS 10.10 and Above, Linux.
SPECIFICATIONS:
HARDWARE | |
Chipset ID |
JMicron – JMS561U |
Compatible Drive Types |
SATA |
Drive Installation |
Removable |
Drive Size |
2.5in & 3.5in |
Interface |
USB 3.0 |
Number of Drives |
2 |
PERFORMANCE | |
Max Drive Capacity |
Currently tested with up to 16TB 7200 RPM 3.5″ hard drives per bay (32TB total) and 2TB 7200 RPM 2.5″ hard drives (4TB total) |
RAID |
No |
|
Type and Rate
|
USB 3.0 – 5 Gbit/s SATA III (6 Gbps) |
UASP Support |
Yes |
CONNECTOR(S) | |
Drive Connectors |
2 – SATA Data & Power Combo (7+15 pin) Receptacle |
Host Connectors |
1 – USB Type-B (9 pin) USB 3.0 Female |
SOFTWARE | |
OS Compatibility |
OS independent; No software or drivers required |
INDICATORS | |
|
LED Indicators
|
2 – Drive Status 1 – Power Indicator 1 – Mode Indicator 1 – Progress Indicator |
POWER | |
Input Current |
1.3 A |
Input Voltage |
100 ~ 240 AC |
Output Current |
2500 mA |
Output Voltage |
12 DC |
Power Consumption (In Watts) |
36 |
Power Source |
AC Adapter Included |
ENVIRONMENTAL | |
Humidity |
20%RH ~ 80%RH |
Operating Temperature |
5°C – 35°C (41°C to 95°C) |
Storage Temperature |
-20°C – 50°C (-4°C to 122°C) |
PHYSICAL CHARACTERISTICS | |
Colour |
Black |
