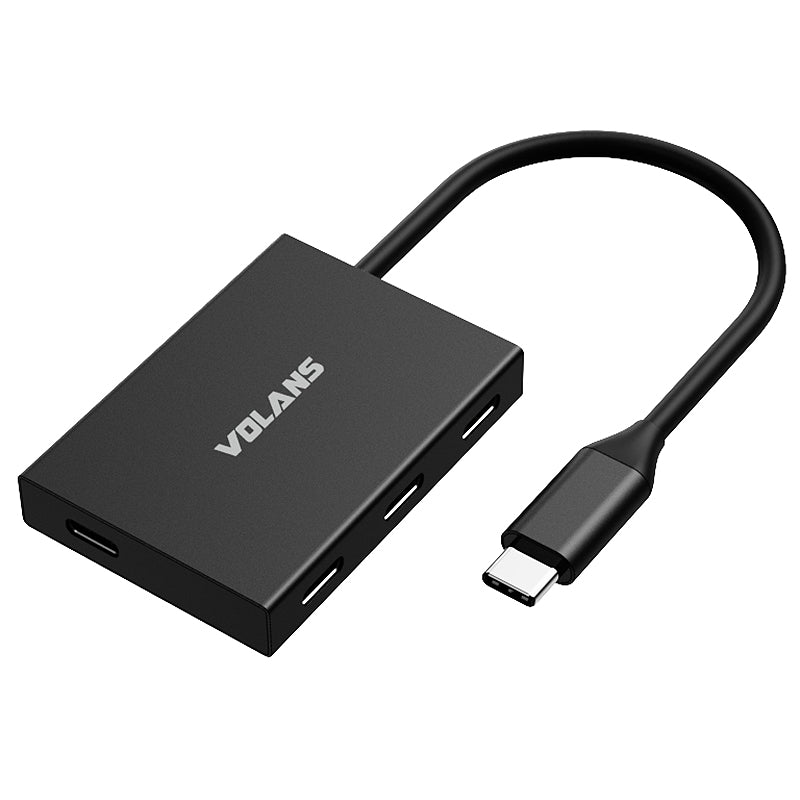

Description
SPECIFICATIONS:
HARDWARE |
|
Bus Type |
USB-C |
Chipset ID |
VL822 |
Fast-Charge Port(s) |
No |
Industry Standards |
USB 3.2 – Backward compatible with USB 2.0 and 1.1 |
Interface |
USB-C |
Ports |
4 |
USB-C Device Port(s) |
Yes |
USB-C Host Connection |
Yes |
PERFORMANCE |
|
Maximum Data Transfer Rate |
10 Gbps |
Type and Rate |
USB 3.2 |
CONNECTOR(S) |
|
Connector Type(s) |
4 – USB Type-C (24 pin) USB 3.2 Female 1 – USB Type-C (24 pin) USB 3.2 Male |
SOFTWARE |
|
OS Compatibility |
OS Independent; No additional drivers or software required |
SPECIAL NOTES / REQUIREMENTS |
|
Note |
USB 3.2 standard offers speeds up to 10Gbps. |
System and Cable Requirements |
Available USB Type-C port – USB 3.2 (10Gbps) |
POWER |
|
Power Source |
USB-Powered |
ENVIRONMENTAL |
|
Humidity |
10~85% RH (Non-condensing) |
Operating Temperature |
0°C to 45°C (32°F to 113°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
PHYSICAL CHARACTERISTICS |
|
Color |
Black |
Enclosure Type |
Aluminium |
Form Factor |
Compact |
