Description

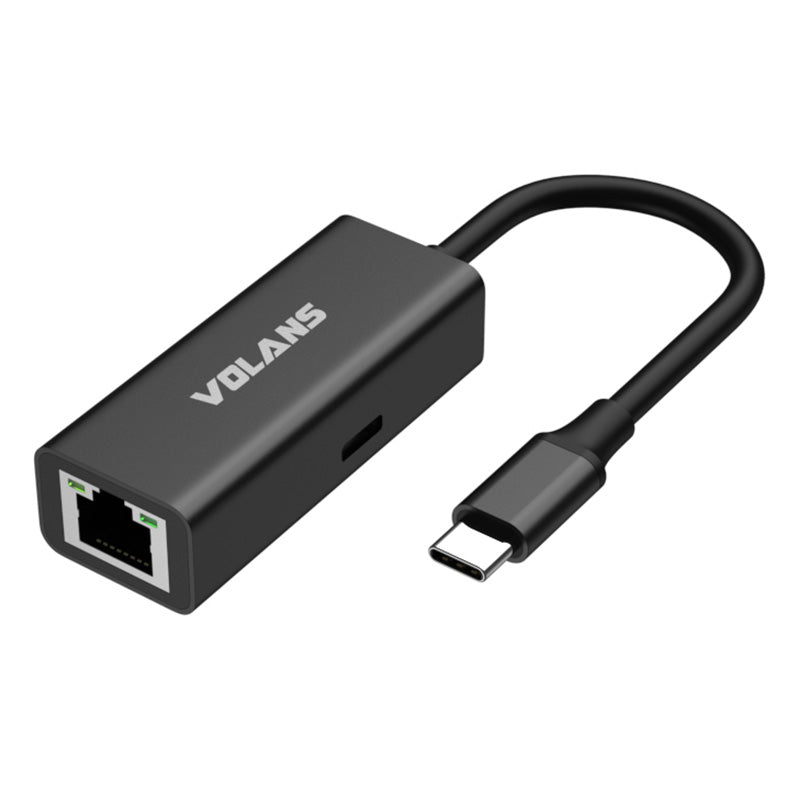

VOLANS Aluminium USB-C to Gigabit Ethernet Network Adapter (VL-RJ45-CP)
Support USB3.0 Specification
Integrated 10/100/1000M transceiver
Support Ethernet cables Crossover Detection and Auto-Correction
Support power down / link down power saving
USB-C female port supports PD3.0 (100W)
Support Microsoft’s AOAC (Always On Always Connected) Mode
Compatible with all USB-C devices
Support Windows 10 above, MacOS 10.12 above
SPECIFICATIONS:
HARDWARE |
|
Bus Type |
USB-C |
Chipset ID |
RTL8153 + VL103 |
Industry Standards |
IEEE 802.3, 802.3u and 802.3ab |
Interface |
RJ45 (Gigabit Ethernet) , USB-C PD3.0 |
Ports |
2 |
PERFORMANCE |
|
Auto MDIX |
Yes |
Compatible Networks |
10/100/1000 Mbps |
Full Duplex Support |
Yes |
Maximum Cable Length |
0.6 in [1.5 cm] |
Maximum Data Transfer Rate |
5Gbps |
Type and Rate |
USB 3.0 – 5 Gbit/s |
CONNECTOR(S) |
|
Connector Type(s) |
1 – USB Type-C (24 pin) USB 3.0 Male |
External Ports |
RJ-45 Female + USB-C PD3.0 |
SOFTWARE |
|
OS Compatibility |
Windows 10, 11 MacOS 10.12 above |
SPECIAL NOTES / REQUIREMENTS |
|
System and Cable Requirements |
Available USB Type-C port |
POWER |
|
Power Source |
USB-Powered |
ENVIRONMENTAL |
|
Humidity |
20% ~ 90% RH |
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
Storage Temperature |
-55°C to 125°C (-67°F to 257°F) |
PHYSICAL CHARACTERISTICS |
|
Color |
Black |
Form Factor |
Attached Cable |
