Description

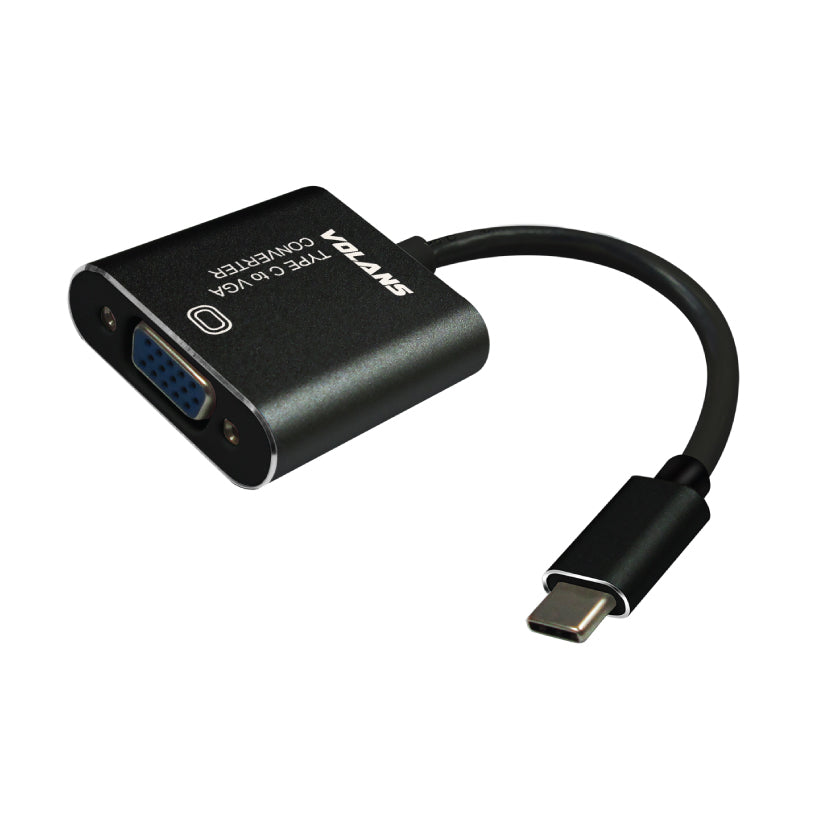

Volans VL-UCVG Aluminium USB Type C to VGA Converter (1080p)
This USB-C™ to VGA video adapter lets you output high-definition VGA video from your USB Type-C™ device.
USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. The connector is featured on ultra-portable devices with USB 3.1 Gen 1. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook and Chromebook Pixel™. It’s also compatible with Thunderbolt™ 3 ports.
Note: Your USB-C equipped device must support video to work with this adapter. The adapter will not output digitally encrypted content.
SPECIFICATIONS:
HARDWARE | |
Converter Type |
Adapter |
Output Signal |
VGA |
Ports |
1 |
PERFORMANCE | |
Maximum Analog Resolutions |
1920×1200 or 1080p |
Wide Screen Supported |
Yes |
CONNECTOR(S) | |
Connector A |
1 – USB-C (24 pin) DisplayPort Alt Mode Male Input |
Connector B |
1 – VGA (15 pin, High Density D-Sub) Female Output |
POWER | |
Power Source |
USB-Powered |
ENVIRONMENTAL | |
Humidity |
25% to 85% RH Non-Condensing |
Operating Temperature |
5°C to 35°C (41°F to 95°F) |
Storage Temperature |
5°C to 35°C (41°F to 95°F) |
PHYSICAL CHARACTERISTICS | |
Color |
Black |
Enclosure Type |
Aluminium |
WHAT’S IN THE BOX | |
Included in Package |
1 – USB-C to VGA adapter |
