Description
Designed for M Key NVM Express (NVMe) based M.2 SSDs only
Convert an NVMe M.2 SSD to a USB 3.1 external drive
Premium aluminium exterior with small, portable design
Latest USB 3.1 Gen 2 interface up to 10Gbps super speed transfer rate
Support USB Super-speed Gen2(10Gbps) / Super-speed Gen1(5Gbps)/High-speed(480Mbps)/Full-speed(12Mbps) operation.
Supports M.2 modules in format 2280, 2260, 2242 and 2230, up to 2TB
Fits size：30*22mm/42*22mm/60*22mm/80*22mm
LED power/status indicators
Easy installation
Support windows 7/8/10, Mac10.x, Linux 2.4.2 and above
SPECIFICATIONS:
Description: |

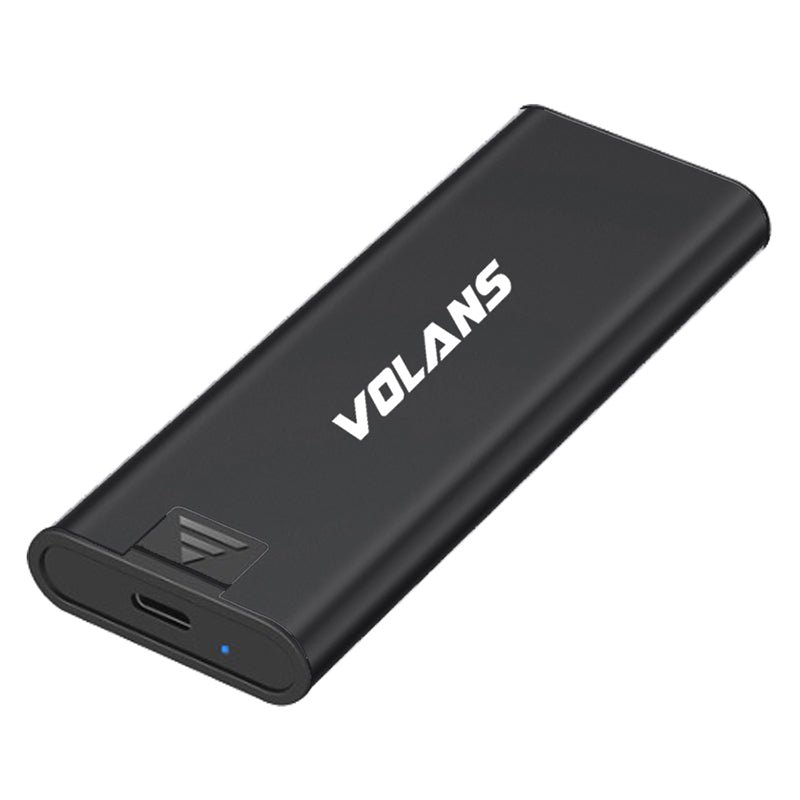

USB 3.1 to M.2 Type C PCIe NVMe SSD Mini External Enclosure |
Main Chip |
JMS583 |
Interfaces: |
Supports USB Super-speed plus(10Gbps)/ USB Super-speed(5Gbps)/ High-speed(480Mbps)/Full-speed(12Mbps) operation. Compliance with USB Mass Storage Class, Bulk-Only Transport Specification |
Application: |
Supports M.2 modules in format 2280, 2260, 2242 and 2230 with key M based on PCIe (NVMe) ONLY, up to 2TB. DOES NOT SUPPORT SATA SSD!! |
Dimensions: |
106.5 (L) x41 (W) x 12.5(H) mm |
Material: |
Aluminium |
Cable: |
USB-C (M) to USB-C (M) cable |
LED Indicator: |
Power and HDD activity |
Power Requirements: |
DC5V supplied by the Computer |
OS Requirements |
Windows2000 / XP / VISTA/7/8/10, Mac OS 9.X and Linux2.4.2. |
