Description

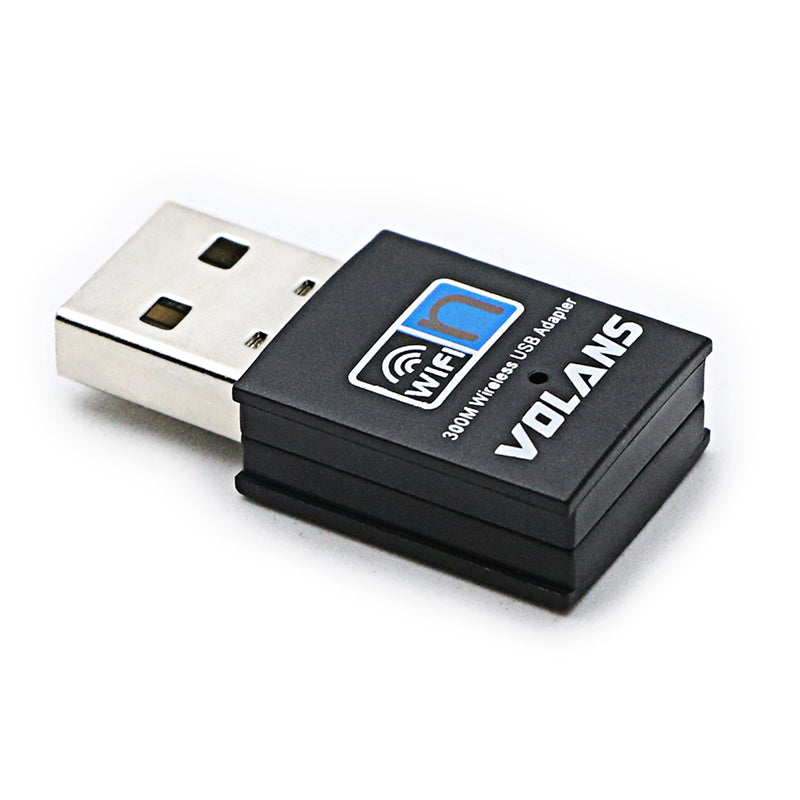

Volans VL-UW30-FD Mini Wireless-N USB Adapter
SPECIFICATIONS:
Warranty |
1 Year |
HARDWARE | |
Bus Type |
USB 2.0 |
Chipset |
Realtek RTL8192EU |
Transmit Power |
20dBm (MAX EIRP) |
Wireless Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Frequency |
2.4-2.4835GHz |
Signal Rate |
11b: Up to 11Mbps(dynamic) |
11g: Up to 54Mbps(dynamic) | |
11n: Up to 300Mbps(dynamic) | |
Antenna |
Internal 5dBi |
Spread Spectrum |
DSSS |
Wireless Security |
64/128-bit WEP |
WPA-PSK / WPA2-PSK | |
WPA / WPA2 | |
Modulation Technology |
BOSK, QPSK, CCK and OPDM (BPSK/QPSK/16-QAM/64-QAM) |
Working Channel Number |
13 |
Working Mode |
Infrastructure and Ad-Hoc |
SOFTWARE | |
OS Compatibility |
Windows® XP, Vista, 7, 8, 8.1, 10 |
Mac OS® 10.6 to 10.12 | |
Chrome OS™ | |
SPECIAL NOTES / REQUIREMENTS | |
System and Cable Requirements |
Available USB port |
INDICATORS | |
LED Indicators |
1 – working status |
ENVIRONMENTAL | |
Humidity |
Operating Humidity: 10%~90% non-condensing |
Storage Humidity: 5%~90% non-condensing | |
Operating Temperature |
0℃~40℃ (32℉~104℉) |
Storage Temperature |
-40℃~70℃ (-40℉~158℉) |
PHYSICAL CHARACTERISTICS | |
Color |
Black |
Enclosure Type |
Plastic |
Form Factor |
Compact |
