Description

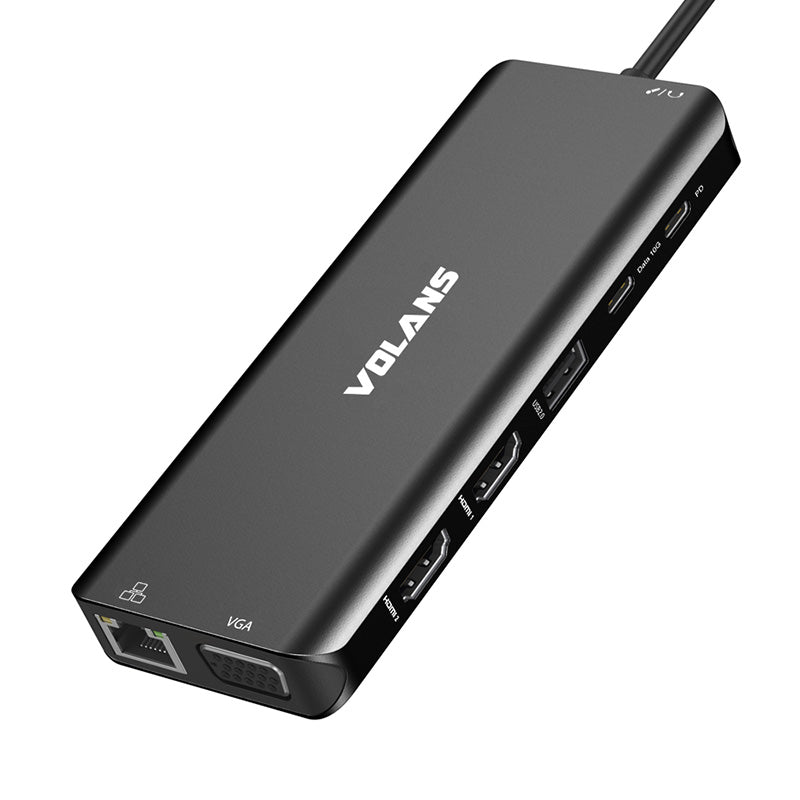

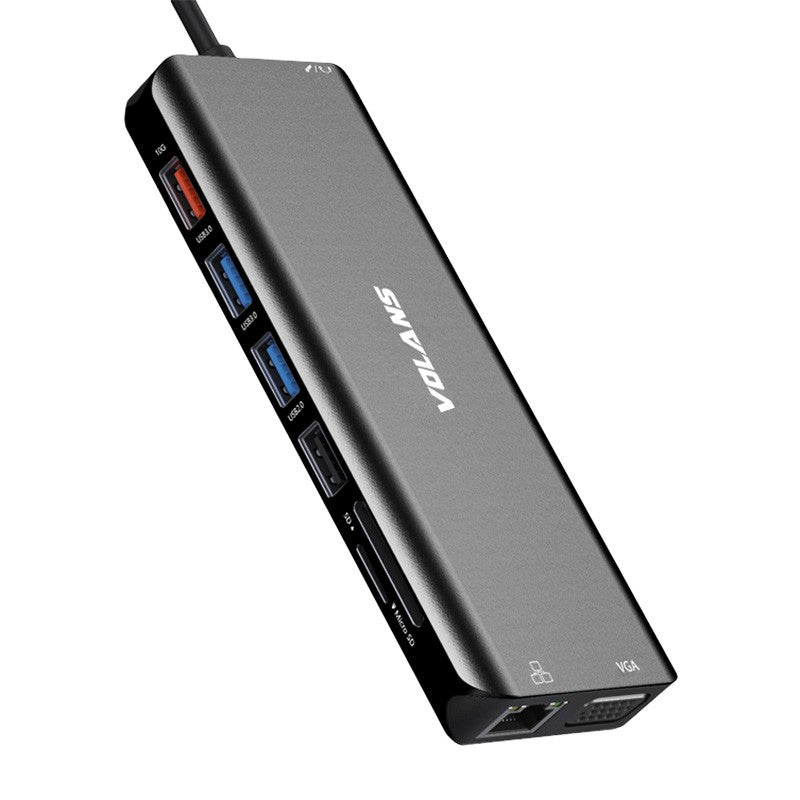

Volans VL-UCTDMH-S USB-C Triple Display DP Docking Station with 100W Power Delivery
Truly Universal: Connect all you want
This USB-C Dock features a full array of ports ranging from 2x HDMI, 1x VGA, 1x RJ45 Gigabit Ethernet, 1xUSB-C PD charging, 1x USB-C data transfer, 3x USB3.0, 2xUSB2.0, 1x 3.5mm Audio/Mic, 1x TF & 1x SD card reader. The USB-C port and Data transmission from the same port. The USB-C port also supports Data transmission from the same port along with power.
Single 4K or Triple 1080p Monitors
The Dock supports either a single monitor with up to 4K resolution when use one of the HDMI ports or It can also support three monitors with up to 1080p FULL HD resolution simultaneously when both HDMI and VGA outputs are used together.
Power Delivery 3.0 Technology
The Docking station uses the latest Power Delivery (PD 3.0) specifications, that lets you charge your Chromebook, MacBook or other USB-C enabled laptop with up to 100W of power.
SPECIFICATIONS:
Video output |
2 x HDMI: Up to 4K@30Hz/60Hz 1 x VGA: Up to 1080P@60Hz |
Data Transfer |
2 x USB-A 2.0: 480Mb/s data speed 3 x USB-A 3.0: 2 x 5Gb/s and 1 x 10Gb/s data speed 1 x USB-C 1: 10Gb/s data speed |
Power |
1 x USB-C 2 Upstream charge: Power Delivery 3.0 up to 100W |
Audio |
1 x Audio jack: 3.5mm audio 2-in1 jack |
LAN port |
1 x RJ45: Gigabit Ethernet up to 1000Mbps |
Data |
2 x Card slot: SD / MicroSD |
IC Solution |
RTD2142（VIDEO) + RTS5459(PD) + VL822 (USB3.1) + RTS5411(USB3.0) + FE1.1(USB2.0) + RTL8153(RJ45) + RTS5306(SD/TF) |
Product Material |
Aluminum + ABS |
Product Color |
Black |
Product Certificate |
FCC/CE/ROHS |
