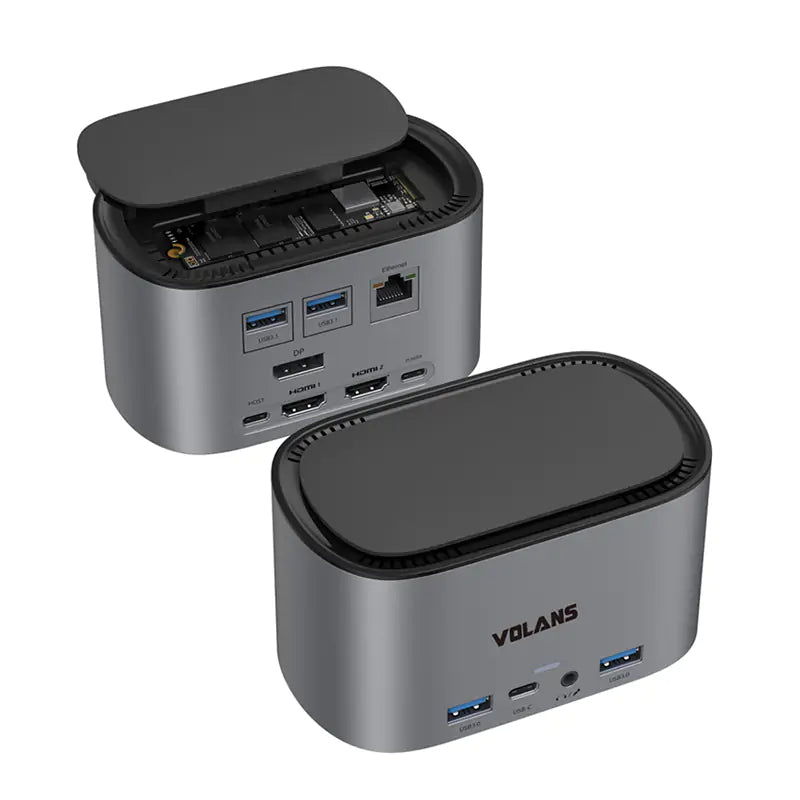

Volans VL-UCTDMD Aluminium 12 in 1 Triple Display Multifunctional Type C Hub

M.2 SSD Enclosure

Compatible SSD:

a. M.2 NVMe SSD (M Key   and B&M Key) up to 10Gb/s

b. M.2 SATA (B&M   Key) up to 5Gb/s

Applicable to sizes   80mm (2280), 60mm (2260), and 42mm (2242) M.2 form factor SSDs

*NOTE: SSD is not   included & not compatible with M.2 SATA B Key SSDs, M.2 PCIe AHCI SSDs,   M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and other   non-M.2 form factor SSDs.

Indicator

LED Light

USB-A 3.1 Gen 1 (Data):

Data Transfer up to   5Gb/s data speed, backwards compatible with USB2.0/USB1.1

USB-C 3.1 Gen 1 (Data):

Data Transfer up to   5Gb/s data speed, backwards compatible with USB2.0/USB1.1

Audio

3.5mm Audio &   Microphone (CTIA Standard)

USB-A 3.1 Gen 1 (Data):

Data Transfer up to   5Gb/s data speed

Back:

USB-A 3.1 Gen 2 (Data):

Data Transfer up to   10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1

USB-A 3.1 Gen 2 (Data):

Data Transfer up to   10Gb/s data speed, backwards compatible with USB3.0/2.0/1.1

RJ45 Gigabit Ethernet:

Up to 1000Mbps, stable   wired access for high-speed connectivity. Connect to the internet instantly   via a wired gigabit Ethernet port.

DP:

Up to 4K @60Hz   resolution (work separately while the specification of your Laptop USB-C Port   is DP1.4)

Up to 4K @30Hz   resolution (work separately while the specification of your Laptop USB-C Port   is DP1.2)

USB-C:

connect to host (please   do not connect the wrong USB-C Port)

HDMI 1:

Up to 4K @60Hz   resolution (work separately while the specification of your Laptop USB-C Port   is DP1.4)

Up to 4K @30Hz   resolution (work separately while the specification of your Laptop USB-C Port   is DP1.2)

HDMI 2:

4Kx2K 30Hz / 3840×2160   max

USB-C:

PD 3.0 100W Max.
