Zotac Gaming GeForce RTX 5060 Ti 8GB Twin Edge OC GDDR7 Graphics Card

CUDA cores

4608

Video Memory

8GB GDDR7

Memory Bus

128-bit

Engine Clock

2602 MHz

Memory Clock

28 Gbps

PCI Express

PCI Express 5.0 x8

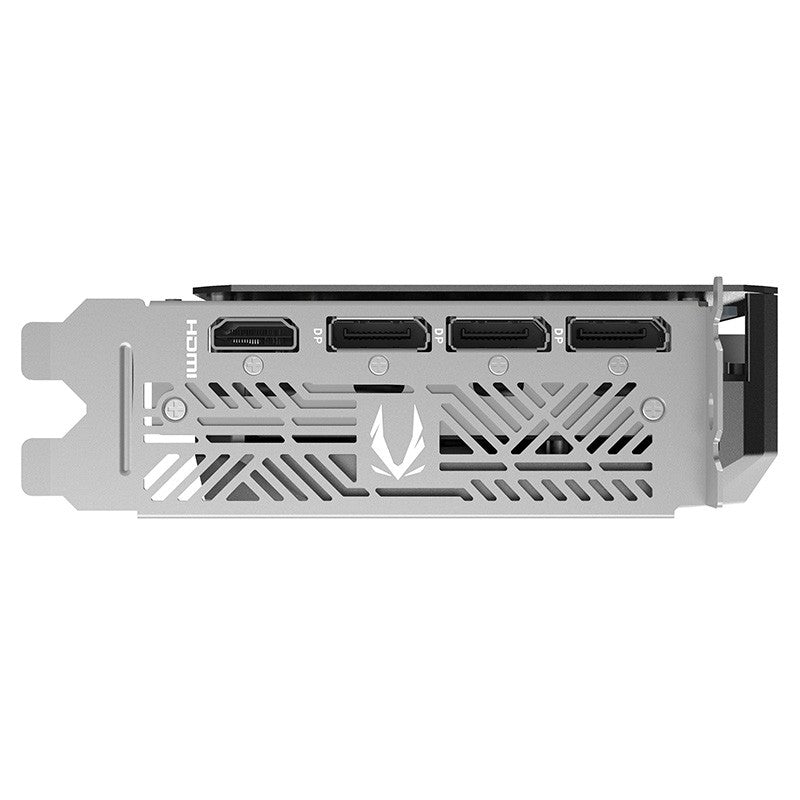

Display Outputs

3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI® Connector

(Supports 4K 120Hz HDR, 8K 60Hz HDR, and Variable Refresh Rate as specified in the HDMI 2.1b Specification)

HDCP Support

2.3

Multi Display Capability

Quad Display

Recommended Power Supply

600W

Power Consumption

180W

Power Input

1 x 8-pin power input

DirectX

Microsoft DirectX® 12 Ultimate

OpenGL

4.6

Cooling

IceStorm 2.0

Slot Size

2

SLI

No

Supported OS

Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length

220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"

Accessories

User Manual
